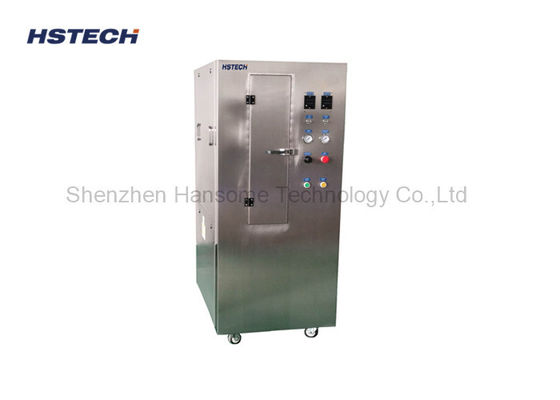

High Pressure SMT Cleaning Equipment Alcohol Solvent PCB Cleaning Machine

High Pressure SMT Cleaning Equipment Alcohol Solvent PCB Cleaning Machine
High Pressure SMT Cleaning Equipment Alcohol Solvent PCB Cleaning Machine

Large Image :  High Pressure SMT Cleaning Equipment Alcohol Solvent PCB Cleaning Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detailed Product Description
Name: Pneumatic Stencil Cleaning Machine Cleaning Liquid: Alcohol
Liquid Filter: 3 Level Filter System Machine Type: High Pressure Cleaner
Use: Clean Solder Paste Stencil Stencil Dimension: 740*740*40mm(or Customized)
Dimension(l*w*h): L980 X W700 X H1730(mm) Weight: 200kg
High Light:

pcb cleaning equipment

,

smt stencil cleaning machine

Alcohol Solvent High Pressure SMT Stencil Cleaning Machine with Drying Function



Introduction



This machine used to clean solder paste, gule on the surface of stencils.



Features



1, Completely pneumatic power, operating without fire risk.

2, Used to remove solder paste, gule and dust on the stencils and steel mesh.

3, Full stainless steel structure, reliable quanlity and won't rust.

4, The machine also equipped with a counter, can counting the cleaning screen quantities.

5, Cleaning in closed-loop which can save the cleaning liquid consumption.

6, Easy operation, after setting the cleaning and drying, press the start to begin the process.

7, High precision 3 level filtering system, use best quality filters.

8, Machine is wheel movment, with wheel fixed divice.



Specification



Model HS-600
Product name Pneumatic stencil cleaning machine
Application stencil size Standard 29inch and below
Cleaning method Rotary double side pressure injection and high pressure air praying ( cleaning and drying ) ​
Machine metarial Stainless steel, anti-fire, explosion-proof
Power Pneumatic
Application Stencil,cooper screen,gule screen
Cleaning solvent Alcohol
Cleaning liquid capacity Max 45L,Min20L
Best cleaning fluid using volume 40L
Liquid consumption 120ml/pc
Cleaning method

Rotary double side pressure injection and high pressure air

Cleaning time 2~4 Min
Drying time 2~5 Min
External air supply 0.4Mpa~0.6Mpa
Consumer air quantity 400~600L/Min
Air outlet size φ125*25mm
Solder dross filter mode 3 level filter(10um,5um,1um)
Weight 200kg
Machine dimension 980MM(L)*700MM(W)*1730MM(H)
