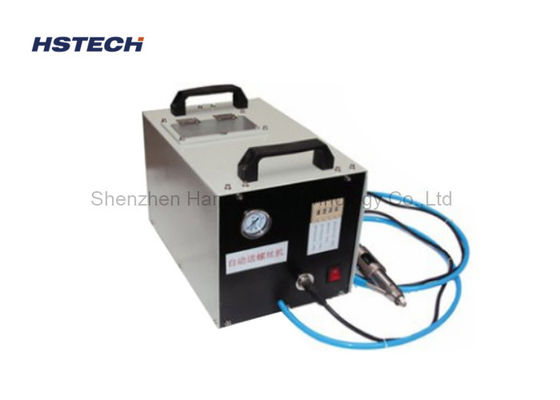

Handheld Screwdriver Screw Fastening Machine Auto Screw Feeding

Handheld Screwdriver Screw Fastening Machine Auto Screw Feeding
Handheld Screwdriver Screw Fastening Machine Auto Screw Feeding

Large Image :  Handheld Screwdriver Screw Fastening Machine Auto Screw Feeding

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-ES801
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Handhold Screw Lock Machine Application: Electric Screwdriver For Assembly Line
Apply Screws Size: M1-M5 Apply Screw Head: All Type
Screw Capacity: M2*6/5000PCS Screw Feeding Speed: 0.5S/pcs
High Light:

desktop screw machine

,

screw locking tightening machine

Handheld Screwdriver Screw Locking Machine with Auto Screw feeder System



Application



Apply for Keyboard, switch, socket, router, charger, calculator, remote control, plastic products, plastic
Toys and other screws intensive product



Features

1. Automatic screw columns, feeding, automatic screening of special-shaped screws, automatic supply air feed.
2. Do not hand take screw, screw automatic feeding, the liberation of the left hand, take and products
3. The efficiency of up to 60 particles per minute, can be unlocked as fast as
4. Strong universality, handheld screwdrivers, flexible operation, application of fixed-point operations
5. Electric group sets of lightweight, torque adjustment is accurate and convenient, ensure that the locking quality
6. Compact, transmission distance is 4 meters, the machine can be placed in working on stage, save space
7. Single hand locking operation, easy piezoelectric batch can complete the locking screw operation.
8. Screw supply fast and reliable locking operation can be in any direction.
9. Safety without noise.
10. Liquid crystal display, counting, alarm function.



Specfication



Model HS-ES801
Screw capacity: M2*6/5000PCS
Efficiency: 60-90pcs/min
Screw feeding speed: 0.5s/pcs (standard screw)
Feeding type: Blowing
Feeding length: 1- 4Meter
Power supply: AC220V 50HZ
Power: 40W
Working pressure: 0.4Mpa-0.6Mpa
Weight: App 10KG
Dimension: 400*250*190mm
Noise Lower 65
