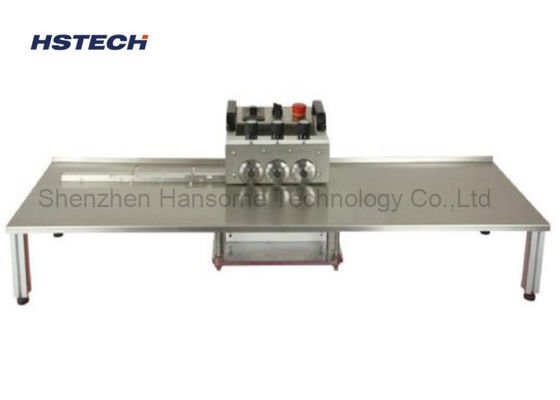

3 Groups Blade PCB Depanelizer Low Force Stress For LED Strip Light

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-F306

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Contact Now

Detailed Product Description

Product Name:	LED Strip Separating Machine	Other Name:	LED Hard Strip Se
Warranty:	1 Year	Package:	Wooden Case
Power Supply:	AC220V	Condition:	New
High Light:	pcb depaneling machine , pcb board cutting machine

3 Groups Blade Low Force Stress PCB Depaneling Machine for LED Strip Light

This machine use 3 groups blade cutting, each groups 4 blade, top 2 balde and bottom 2 blade,ultra low cutting force strss, protect the board without deformation, it suitable for hardness aluminum and copper boards.

Features

1, This unit separator is very suitable for led hard strip cutting, the whole pin board go through the blade, and separated to

small single strip board.

2, 3 groups blade step separating, make sure the board cutting surface smooth, without glitch, well protected the boards without bent.

3, Special new design balde, durable 2 times than normal blade, also the top and bottom blade can be adjusted accurately.

4, The whole machine is high precision, easy to maintenance, safety operation.

5, The platform length has options for 1.2meter and 2.4 meter, also the platform can be fed with a trough to collect the separated boards conveniently.

6, The platform height can be adjusted, range 0~50mm.

Specification

Model			HS-F300
Production name			3 groups high speed strip separating machine
Machine dimension			390mm×3250mm×330mm
Platform dimension			1200mm(or 2400mm)×518mm×520mm
Blade dimension			Circular blade ϕ60mm×12mm×3mm
Separating thickness			0.8~3mm, 1/3 of the board thickness
Voltage			AC220V/110V, 50/60Hz
Air supply			No
Machine power			60W
Separating speed			1mm-2000mm/s
Separating length			100mm-unlimited
Separating width			4-100mm best, single board width,not whole pin board width
Suitable boards			LED strip board,aluminum and fiber glass boards
Weight			Around 34kg
