| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,RoHS |
| Model Number: | HS-158 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 7~10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: | SMD Chip Counter | Motor Brand: | Panasonic |
|---|---|---|---|
| Motor Power: | 6W | Plastic Reel Size: | 7-13 Inch |
| Error: | 0 | Package: | Carton Box With Foam Protect |
| High Light: | smd chip counter,smd parts counter |
||

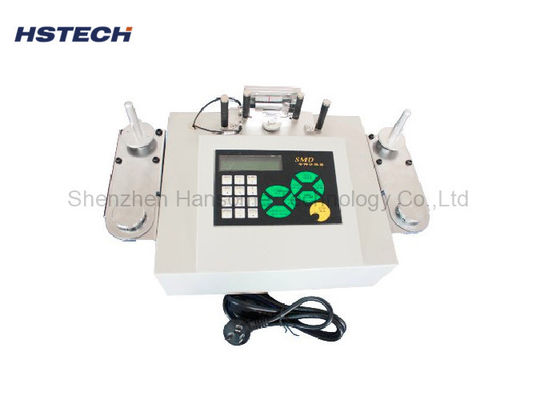

Power Supply Digital LED Display SMD Components Counter With RS232 Connector
Introduction
SMD Chip Counter is used for counting the quality of the SMD components in tape/reel packing. It's a kind of efficient auxiliary equipment for material management.
Features
1. AC100/220V power supply option.
2. Can connect the barcode Scanner and label printer,
3. Easy operate,designed to prevent tape dropping,minimizing risk of damage to tapes.
4. Count forward and reverse ,double-check feature ensures accuracy,built-in memory allows you to preset count quantity.
5. The counter use drafting LCD screen. Small size, light weight, easy to carry
6. Use patent reflector,humanized operation platform.
7. Optical fiber sensor detect leak ,motor will stop working when detected leak.
Specification
| Model: | HS-158 | |||
| Voltage: | AC220, 50/60Hz | |||
| Power Supply: | 15W | |||
| Motor Brand: | Panosonic 6W AC motor | |||
| Counting Range: | “-100000~100000" | |||
| Pitch Size: | 2,4,8,12,16,24,32,44,56,72,88 m | |||
| Plastic reel size: | 7-13 inch | |||
| Universal Products | Suitable for all tape components | |||
| Error | 0 | |||
| Product Size: | 450*270*180mm | |||
| Package size | 470*280*190mm | |||
| Gross Weight: | 9.5kg | |||
