| Product Name: | Automa PCB Loader | Color: | White |
|---|---|---|---|
| Power Supply: | AC110V/220V,50/60Hz | PLC: | MITSUBISHI |
| Relay: | Schneider | Optoelectric Switch: | Omron |
| High Light: | smt production line equipment,smt assembly equipment |
||

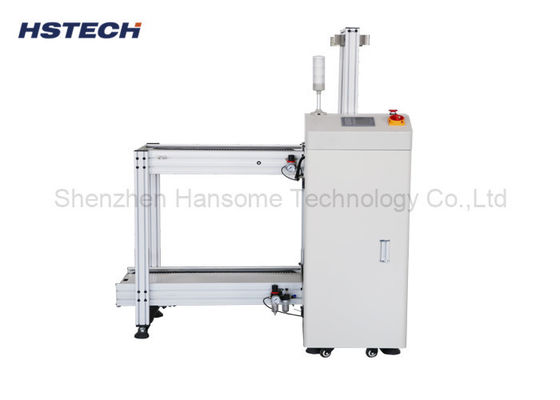

Smooth Lead Screw Light Display PCB Handling Equipment / Loader Machine
Application
This machine is used for the start of SMT production line, pushing the PCBs out of the magazine, and transport to the rail.
Specification
| Model | HS-250LD | HS-330LD | HS-390LD | HS-460LD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 920±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| Weight | Approx 140kg | Approx 180kg | Approx 220kg |
Approx 230kg |
Features
1, Multiple magazines capacity.
2, Mitsubishi PLC,true color touch screen control
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
