| Place of Origin: | China |
| Brand Name: | HSTECH |
| Model Number: | VS-600WB |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case, with foam |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Certification: | CE | Product Name: | Hot Sealing External Vacuum Packing Machine |
|---|---|---|---|
| Power Supply: | 110V/220V,50/60Hz | Air Pressure: | 5-8kg |
| Power: | 1.5KW | Application: | Electronic Products,Food,Commodity,Medical,Chemical,Machinery & Hardware |
| Condition: | New | ||
| High Light: | commercial vacuum packaging machine,chamber vacuum sealer |
||

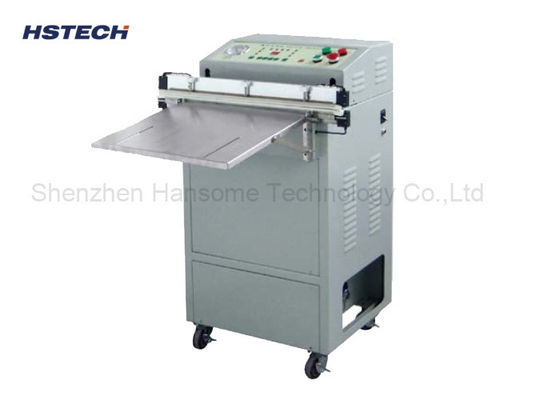

Floor Standing Upper and Down Hot Sealing Vacuum Packing Machine
Introduction
This external vacuum packing machine using upper and down hot sealing packing method, the whole machine is made of painted shell, also can be customized using stainless steel. The platform is adjustable to choose the right height you need, slience wheel for the machine movement.
Features
1, Compare with the standard external packing machine, this unit machine using hot sealing type, suitable for high requirement and thicker bags sealing, like 4 level bags, folding pocket, organ bag, and foil paper.
2, With air pressure supply, also we have another option,can customized the machine to use a internal air compressor, then don't need external air pressure.
3 This unit machine equipped with the self-detection system, the machine will alarm automatically when power on, power off or during the operation.
4, It's a standard vacuum packer, max sealing size is 600mm, working platform size is 400x450mm, especially suitable for packing IC, electronic components, PCB board, optoelectronic parts, hardware products, like LED lamp, PCB, FPC, taped IC, Reel packaged IC, and plastic packaged or trays packaged smart phone screen, tablet screen, touch screen, wire, connectors.
Specification
| Model | VS-600WB |
| Packing capacity | 3-10 bags/min( based on product size) |
| Sealing size | W600*W5~10mm(sealing line width, customized) |
| Max packing size | L(unlimited)*W600*H(unlimited) |
| Machine size | 670*460*1050mm |
| Platform size | 400*450mm(can customized) |
| Power supply | 110V/220V, 50/60Hz |
| Power | 1.5KW |
| Air pressure | 5-8kg(also can customized to no air pressure, make internal air compressor) |
| Ultimate vacuum | -o.1Mpa |
| Weight | 85kg |
