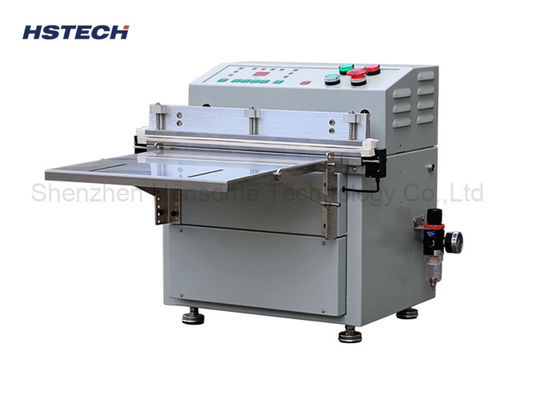

Economic Desktop External Vacuum Packing Machine For PCB Package

Economic Desktop External Vacuum Packing Machine For PCB Package
Economic Desktop External Vacuum Packing Machine For PCB Package

Large Image :  Economic Desktop External Vacuum Packing Machine For PCB Package

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: VS-450TA
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, with foam
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detailed Product Description
Product Name: External Desktop Vacuum Packer Condition: New
Weight: 45KG Voltage: 110-220V/50-60HZ
Automatic Grade: Automatic,Semi-Automatic Driven Type: Electric And Pneumatic
High Light:

industrial vacuum sealer machine

,

chamber vacuum sealer

Economic Desktop External Vacuum Packing / Sealing Machine for PCB Package



Introduction



This vacuum packing machine called desktop external vacuum packing machine, made of painted shell, or customized stainless steel, suitable for packing IC, electronic components, PCB board, optoelectronic parts, hardware products, like LED lamp, PCB, FPC, taped IC, Reel packaged IC, and plastic packaged or trays packaged smart phone screen, tablet screen, touch screen, wire, connectors.



Control system



This machine use our self developing micro control system, this system with accurate controling, Strong anti-interference ability, and stable, all the parameter can be setted at the panel, don't need operation steps.



Automatic / Manual function



1, Steps two feet to finish automatic packing, set the parameter at the control panel first, step one feet to make sure if the packing bags are flat, step the second feet to finish the whole packing process, packing speed improve fast.



2, Manual packing steps 3 feet to finish the packing, first step one feet to make sure if the bags are flat, ready for packing, step second feet to vacuuming, visual check if the vacuum reach the requirement, step the third feet to run the order, automatic finish packing.



Specification



Model VS-450TA VS-600TA
Packing capacity 3~10(based on product size) 3~10(based on product size)
Max sealing size W450*W5~10mm(sealing line width, customized) W600*W5~10mm(sealing line width, customized)
Max packing size L(unlimited)*W450*H(unlimited) L(unlimited)*W600*H(unlimited)
Platform size 350x300(customized) 350x300(customized)
Lilmited air pressure -0.1Mpa -0.1Mpa
External air pressure 5-8kg 5-8kg
Power supply 110V/220V, 50/60Hz 110V/220V, 50/60Hz
Power 1.5KW 1.75KW
Machine size 520×400×500mm 670×400×500mm
Weight 45kg 60kg
