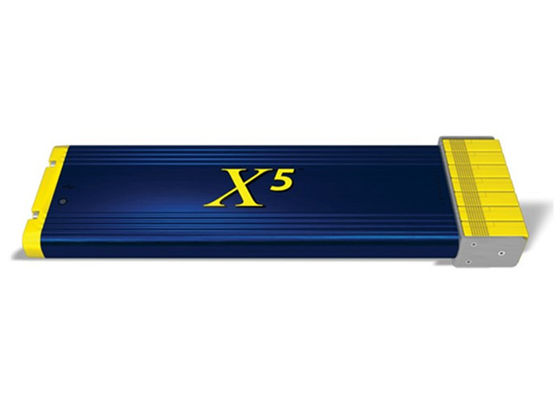

KIC X5 Thermal Profiler 9 Channels / 12 Channels Avail USB Data Reading

KIC X5 Thermal Profiler 9 Channels / 12 Channels Avail USB Data Reading
KIC X5 Thermal Profiler 9 Channels / 12 Channels Avail USB Data Reading

Large Image :  KIC X5 Thermal Profiler 9 Channels / 12 Channels Avail USB Data Reading

Product Details:
Place of Origin: China
Brand Name: KIC
Model Number: X5
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Special design aluminum box
Delivery Time: 3~5days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Detailed Product Description
Product Name: KIC Thermal Profile Channels: 7 Channels,9 Channels, 12 Channels
Accuracy: ± 0.5˚C Resolution: 0.1˚C
Interal Operating Temp: 0˚C~85˚C Sample Rate: 0.1 To 10 Readings/sec
High Light:

oven temperature profil

,

thermal break profile

9 Channels / 12 Channels Avail USB Data Reading KIC X5 Thermal Profiler



Introduction


This thermal profiler is used to test the temperatur of reflow oven, with 7, 9, and 12-channel models options, able to acquire a lot of data, allowing you to precisely evaluate each thermal profile and process  during production.  It made of stainless Steel Thermal Shield for High Temperature protection, temperature profile can be monitoring and accessed anywhere, also the profiler can be accessed by smart Phone with installation of iphone OS or Android system.



Options and size


7 Channels : 206X60X17mm
9 Channels : 206X75X17mm
12 Channels : 206X98X17mm



Specifications



Model KIC X5
Dimension 7-channel: 206 x 60 x 17 mm,with shield: 302 x 75 x 23 mm
9-channel: 206 x 75 x 17 mm,with shield: 312 x 90 x 23 mm
12-channel 206 x 98 x 17 mm,with shield: 323 x 113 x 23 mm
Accuracy ± 0.5˚C
Resolution 0.1˚C
Interal operating temp 0˚C~85˚C
Sample rate 0.1 to 10 readings/sec
Data points 224,640
Data transfer Standard model
USB 2.0 (Std-A/Mini-B) after datalogging run
RF model
Wireless over RF (radio frequency 433.92 MHz), sent real-time during datalogging run, or via USB 2.0 (Std-A/Mini-B) after datalogging run
Power 3 AAA batteries, USB cable when connected to a computer
Thermocouple Capacity Type K, standard (7, 9, or 12, depending on model)
Thermocouple Temperature Range -150˚C to 1050˚C
Thermal shield Cool Touch Stainless Steel 7 or 9 channel
Computer Configuration
Minimum System Requirements
Dual Core / 1 GHz processor PC w/2 GB RAM
2 GB available storage
Video 1024 x 768 resolution, 16-bit
1 available USB port for data download
1 available USB port for software key
