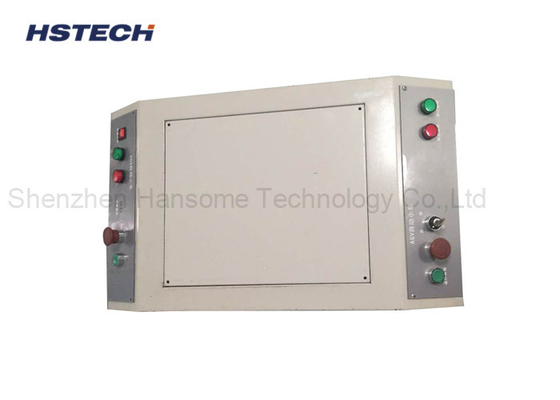

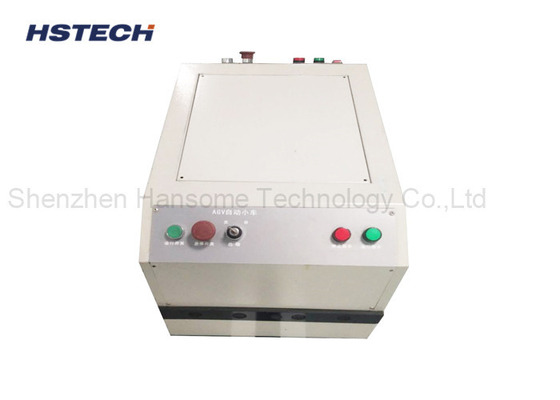

Terminal Station Automated Guided Vehicles Double Side Control

Terminal Station Automated Guided Vehicles Double Side Control
Terminal Station Automated Guided Vehicles Double Side Control Terminal Station Automated Guided Vehicles Double Side Control

Large Image :  Terminal Station Automated Guided Vehicles Double Side Control

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-200A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: Automatic Guided Vehicles Other Name: AGV Car
Application: Transporting Materials In Factory Guidance Type: Rubber Strip
Battery: Lead-acid Battery,lithium Battery Warranty: 1 Year
High Light:

agv automated guided vehicle

,

automated guided cart

Double Side Control Automated Guided Vehicles Terminal Station



Introduction



This AGV car is a economic vehicle, which is powered by battery, the car is moving according to the rubber tape guidance to reach the setted place, also can set the transfer station freely, it's very convenient to transfer the materials, save much labor.



Features



1, Loading capacity 100kg, or customized.

2, Chargable battery, when the battery is full, the car can operation the whole day.

3, Lead-acid battery or Li battery options, customers can make the choice, both batter can be charging.

4, The moving direction can set freely, factory can paste the rubber strip freely.

5, Paste the white color strip onto the rubber strip to make the transfer station, car will stop when meet the station, operation need press the button again to order the car continue working.

6, Paste the black strip onto the rubber strip, that means it's a terminal.



Specification



Product name AGV transport car
Model HS-200A
Machine dimension 760*420*350mm
Guide Method rubber strip guidance
Driving Method Dual-wheel differential driving
Load Capacity 100kg(or customized)
Driving power DC24V
Moving speed 0-50m/min
Turning radius min 800mm(car body)
Navigation accuracy ±10mm
Continuous working time >24h
Gradeability 3-5degree
Stop accuracy ±10mm
Lifting height 50mm
Battery charge method Manual charging
Safety induction range ≤3m,can be adjustable
Emergency brake distance <20mm
Battery Li Battery
Alarm
light and sound alarm
