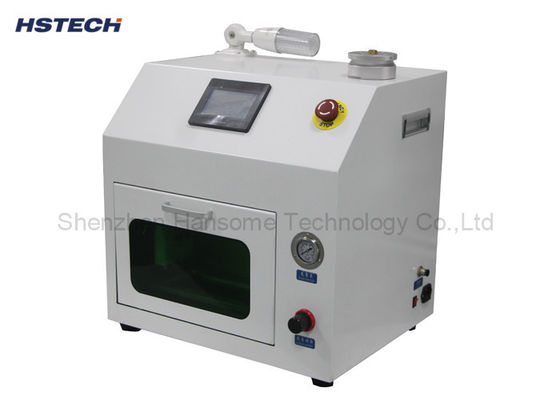

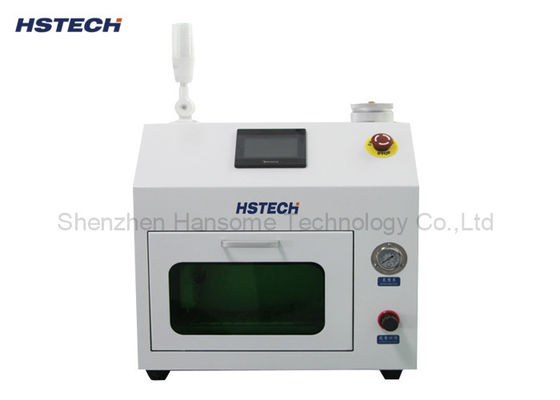

200 Watt SMT Nozzle Cleaner with Transprent Cover Water Level Induction

200 Watt SMT Nozzle Cleaner with Transprent Cover Water Level Induction
200 Watt SMT Nozzle Cleaner with Transprent Cover Water Level Induction

Large Image :  200 Watt SMT Nozzle Cleaner with Transprent Cover Water Level Induction

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~10 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: SMT Nozzle Cleaner Power Supply: 200W
Machine Color: Computer White Cleaning Solvent: D.I Water
Machine Weight: 45kg Machine Size: 500*440*530mm
High Light:

pcb cleaning equipment

,

circuit board cleaning equipment

Data Sheet Nozzle Cleaning Machine HS-800.pdf



200 Watt SMT Nozzle Cleaner with Transprent Cover Water Level Induction



Introduction



HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.



Specification



Model HS-800
Voltage Single phase, AC110-220V, 50H60Hz
Air pressure 0.5~0.6Mpa
Air source Pure compressor air
Control mode PLC+Touch Screen
Jet pressure ≤0.4MPa​
Air wastage Under 280NL/min
Water source​ D.I water
Water storage 800cc
Water consumption 300cc/hrs
Admission pipe/Drainpipe​ φ8/φ6
Nozzle tray Default 30 nozzles
Nozzle size 01005, 0201-2512inch
Noise 35-60dB



Product Features



1, Elegant appearance, high precision 304 stainless steel machine body.

2, Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving.

3, Suitable for cleaning all kinds of nozzles, also have good cleaning performance for cross type, I-shaped, and special shape nozzles.
4, The atomized water flow equipped with supersonic spraying cleaning to completely clean the dirt impurities which the ultrasonic waves can not clean it all, ensure the clearness even very small nozzle holes.
5, Easy operation, English is available.
6, Inspection window which can watch the whole cleaning process.
7, Using D.I water as cleaning solvent,not harmful for all types of nozzles and reflector panel.
8, Touch screen + PLC distributed control, stable and reliable performance
