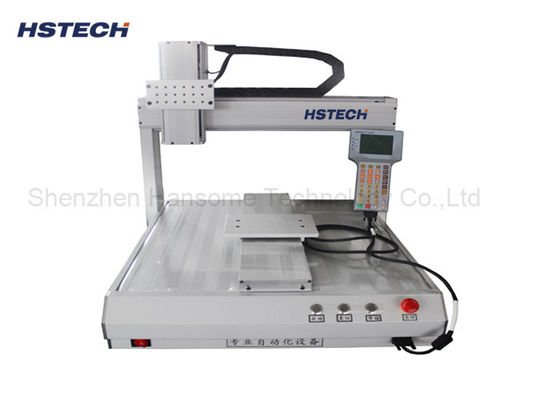

Epoxy Glue Dispensing Machine Teach Pendant Stepping Motor With Vacuum Device

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-D441

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	Wooden package, with foam
Delivery Time:	5~7 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week

Contact Now

Detailed Product Description

Product Name:	4Axis Glue Dispensing Machine	Driven System:	Stepper And Timing Belt
XYZ Working Range:	400400100mm	XYZ Speed:	Max 300mm/s
Repeat Accuracy:	±0.02mm	Warranty:	1 Year
High Light:	commercial vacuum packaging machine , automatic glue dispenser

Teach Pendant Stepping Motor Epoxy Glue Smt Dispenser with Vacuum Device

Specification

Model	HS-D441
Power supply	110V/220V 50-60Hz 350W
Glue Mixing Ratio	1:1-10:1/Customizable
Dispensing Speed	10-150g/5s(based on 1:1 glue proportion)
Dispensing Precision	Glue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range	400400100mm(Z axis can be rotated)
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount±1%, Ratio:±1%
Programming	Teach Pendant
Control	PLC
Leak-proof Function	Valve with Vacuum Device
Document Support	CAD, CorelDRAW
Weight	40kg
Dimension(LWH)	616685645mm

Machine feature

1. PC computer LCD screen operation, easy to program, easy to learn and understand;
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path;
3. The size of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glu e can all be parameterized;
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked;
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product;
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heatingtemperature control devices, etc.
7. Optional 1-4 head dispensing device, multiple glue guns at the same time to double the work efficiency;
8. The software has functions such as regional display, translation rotation operation, etc.
9. Adopt trapezoidal acceleration and deceleration, speed preview, micro line interpolation and other technologies;
10. Configure high-speed, low-noise Japanese stepping motor with precise positioning, quick response,stable performance and long service life.
