Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage

Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage
Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage

Large Image :  Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S441S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam inside
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Detailed Product Description
Product Name: Auto Soldering Machine Moving Range: 400x400x100mm
Soldering Head: Double Platform: Single Y Working Platform
Voltage: AC220V/110V Usage: Pcb Soldeing,Welding,Circuit Board Soldering
Warranty: 1 Year With Long-life Maintenance
High Light:

robotic soldering machine

,

auto soldering machine

Multiple Axis Single Y Working Station Soldering Machine/Robot with File Storage



Introduction



This automatic soldering machine is double soldering head machine, customized moving range to 400mm. The machine is used to save labor, use automatic soldering method to instead traditional manual soldering. During the operation, only need one operator to loading and unloading the product after setting the program. With the machine not only can improve the production efficiency, but also improve the soldering quality, it's a more precision and flexible soldering method.

We have many options for the soldering machine, axis from 3 axis to max 8 axis, if rotation or not, and working platform single or dual, all depends on your requirement.



Specification



Model HS-S441S HS-S551S HS-S661S
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 400*400*100mm 500*500*100mm 600*600*100mm
R axis none
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD,CorelDRAW
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 40kg 50kg 55kg
Machine dimension

615*685*800mm

715*715*800mm 815*815*800mm





Main machine configuration



1, Double soldering Iron, single Y working platform.

2, Handheld teach pendant programmer.

3, Heating controller

4, Broken tin controller

5, Solder pen assembly

6, Welding tip

7, Tin out components



Features



1, 3 Axis working, single Y working platform.

2, Double soldering iron model, the moving range has many options depends on the product dimension.

3, The machine made of high quality aluminum, also the machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.

4, Support many welding method, point welding, drag welding, etc.

5, Teach pandent programing, can save max 99 groups program.

6, Stepper motor and timing belt control, equipped with Taiwan brand linear guide at the same time.

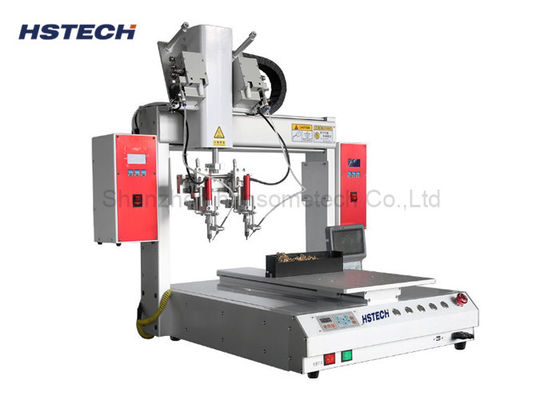

Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage 0

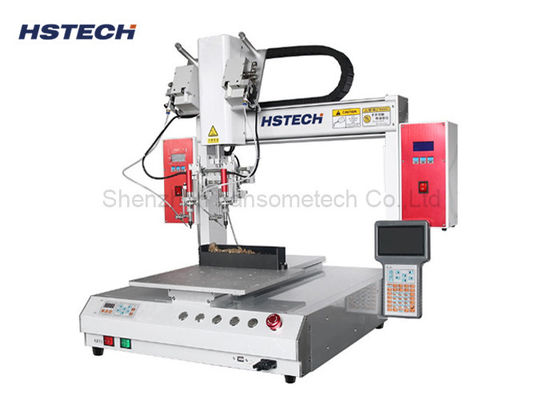

Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage 1

Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage 2

Multiple Axis Automatic Soldering Robot Single Y Working Station With File Storage 3
