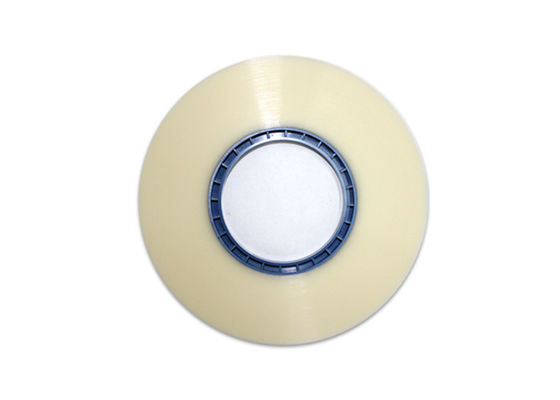

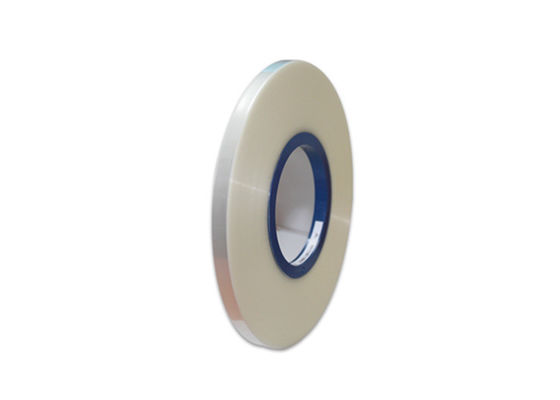

Transparent PET Material Cover Up Tape 9.3mm Width 0.2Mpa Sealing Pressure

Transparent PET Material Cover Up Tape 9.3mm Width 0.2Mpa Sealing Pressure
Transparent PET Material Cover Up Tape 9.3mm Width 0.2Mpa Sealing Pressure Transparent PET Material Cover Up Tape 9.3mm Width 0.2Mpa Sealing Pressure Transparent PET Material Cover Up Tape 9.3mm Width 0.2Mpa Sealing Pressure

Large Image :  Transparent PET Material Cover Up Tape 9.3mm Width 0.2Mpa Sealing Pressure

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: GD-01
Payment & Shipping Terms:
Minimum Order Quantity: 200 meters
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000000 Meters per month
Detailed Product Description
Product Name: Hot Sealing Cover Tape Material: Composite Material
Color: Transparent Type: Hot Sealing Tape
Condition: New Application: Carrier Tape To Hold Components
Length: According To Customers' Sizes Warranty: 1 Year
High Light:

smd parts counter

,

electronic component reel counter

Transparent Hot Sealing PET Material Cover Tape Hold the Pocket in Carrier Tape



Introduction



The cover tape is sealed to the carrier tape to hold the devices in the pockets. We offers a full range of cover tapes to meet various requirements.



Cover tape specification



Name Cover tape
Material Composite material
Calculation unit Meter
Tape width 9.3mm
Tape specs 300M per reel
Color Transparent
Sealing pressure 0.2Mpa
MOQ 200meters
Cover tape hot sealing
Reels Available



Carrier tape size and matched cover tape



Carrier Tape(mm) 8 12 16 24 32 44 56 72 88 104
Cover Tape(mm) 5.4 9.3 13.3 21.3 25.5 37.5 49.5 65.5 81.5 97.5



Features



1, Stable pelling force stress, and the component is not moved when peeling off.

2, Tensile Strength:20-110GF

3, Transparent color, convenient for detection during sealing.

4, Multiple options for cover tape width, 5.4/9.3/13.3/21.3/25.5mm,etc.also can be custom according to the requirement.



Application



This cover tape is widely used in IC, capacitors, resistors, connectors, micro-transformers, inductors, electronic switches, diodes, transistors, LED chip, Low Power LEDs, Mid/High Power Packages, Domed Packages, LED Modules, Lenses, LED Die,crystals and other surface-mount components packaging, to meet the requirements of efficient, fast and miniaturized production of modern electronic products.
