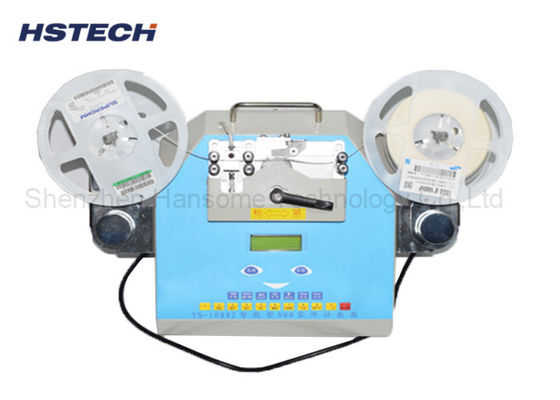

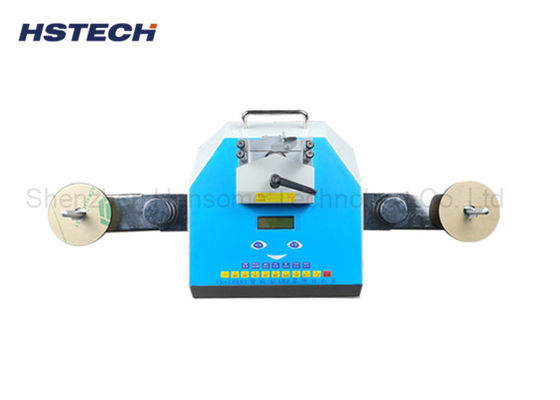

SMT Production Line SMD Component Chip Counter Machine Speed Adjustment 80W

SMT Production Line SMD Component Chip Counter Machine Speed Adjustment 80W

  • SMT Production Line SMD Component Chip Counter Machine Speed Adjustment 80W
  • SMT Production Line SMD Component Chip Counter Machine Speed Adjustment 80W
SMT Production Line SMD Component Chip Counter Machine Speed Adjustment 80W
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-881
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: SMD Components Counter Other Name: SMD Chip Counter
Power Supply: AC110V,AC220V, 50/60Hz Wattage: 80W
Product Size: 730*230*270mm Weight: 11kg
High Light:

smd chip counter

,

smd parts counter

SMT Production Line Speed Adjustment 80W SMD Component Chip Counter Machine



Features



1. Intellegent counting, with pocket check function.
2. Eight grade speed adjustment, improve the efficiency,meet the different size tape.
3. Optional label printer and barcode scanner.
4. With voice prompt function.

5, With the end comopnents automatic stop counting function.
6. 57 stepper motor.

7, The wohle machine body stainless steel, durable design.

8, High resolution LED display, better to observe the counting process.
9, Fully control the components in the factory, avoid mistakes.



Specification



Model HS-881
Power supply AC110V,AC220V, 50/60Hz
Wattage 80W
Counting time 19 seconds to 2 min
Counting range -16777216~16777216 pcs
Pitch size 2,4,8,9,10,12,16,24,32mm
Tape width 8,12,16,24,32,44,56,72,88 m
Plastic reel size 7-13 inch
Application Suitable for all components
Product size 730*230*270mm
Gross weight 11kg



Comparison with traditional counter



Comparison point Traditional counter Intelligent counter-HS-881
Automatic stop after work No, need to push stop manually yes
Buffer stop No Yes,would slow down when is finishing
Voice instruction and number off No Yes, finish alert
Error No. No.
Power 30W 80W
Speed

For 5000pcs small elements

30 seconds per plate

For 5000pcs small elements

15 seconds per plate

Speed Adjustment 3 levels 8 levels
Noise Low low
Counting scope -99999 to 99999 -16 777 216 to 16 777 216
Printer port yes yes
Scanner port yes yes
Omission detection, optional yes yes
Clock, optional yes yes
