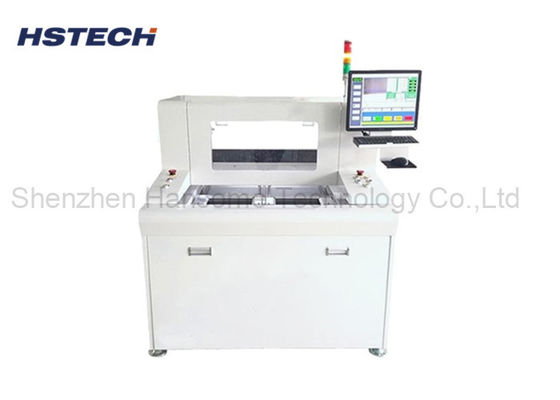

Fixture Customized Visual Check Automatic PCB Router FPC Aluminum Board FR4 Curve

Fixture Customized Visual Check Automatic PCB Router FPC Aluminum Board FR4 Curve
Fixture Customized Visual Check Automatic PCB Router FPC Aluminum Board FR4 Curve

Large Image :  Fixture Customized Visual Check Automatic PCB Router FPC Aluminum Board FR4 Curve

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: RM-560
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package with foam
Delivery Time: 1 month
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: PCBA Router Machine Other Name: Automatic PCB Router
Platform: Double Routing Spindle: 6000RPM
Guide: Hiwin Driven Motor: Servo Motor
Voltage: AC380V 50HZ Warranty: 1 Year
High Light:

pcb cnc router

,

pcba cutting machine

Fixture Customized Visual Check FPC Aluminum Board FR4 Curve PCB Router Machine

Machine introduction



This automatic PCB router machine using high speed-routing spindle, equipped with double platform, 4 axis servo motor driven,

the spindle moving according to the preset programming, automatic separating the stamp hole connectted board, curve board,and other inregular shape boards. The machine use window operation system, CCD detection the separating track,can check the separating process any time.

Main features


1, High speed routing spindle, 6000rpm.
2, Windows operation, manual location or file import.
3, CCD detection.
4, Internal dust-collector including.

5, Suitable for separating FPC board, aluminum board, FR4,etc.

6, Mainly used for separating stamp hole connected board, curve board, instead of traditional v-cut board.


Sepcfication



Model RM-560
Structure Single Spindle,dual work platforms
Machine Size(mm) 1000*1200*1550
Gross Weight 700kg
Dust collector size(mm) 625*600*1600
Dust Collection method Bottom collection
Work platform size 300*400mm
Platform driving type Double rotary platform,precision slicer with 3phase motor inverter
Driving system X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter
Routing Spindle 6000rpm
Cutting speed 1-100mm/s
Cutting accuracy ±0.05mm
Repeat accuracy ±0.02mm
Axis moving speed 800mm/s
Z axis system Screw driven,dual guide
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Tool life control Software program control
Active protective function safty light curtain
Security door Manual door
Error alarm Yes
Program method Self programing,camera controlled by keyboard and mouser
