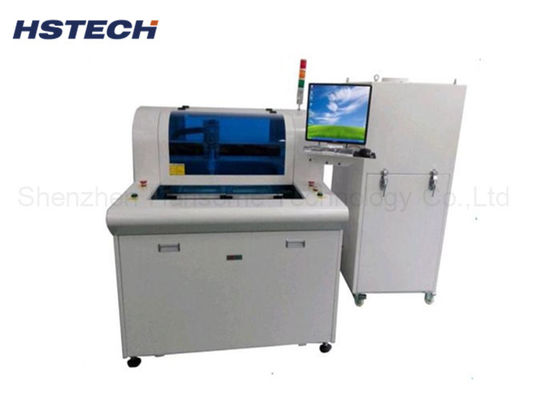

Double Platform PCB Router Machine Dust Collector Milling Cutter Routing Kit

Double Platform PCB Router Machine Dust Collector Milling Cutter Routing Kit
Double Platform PCB Router Machine Dust Collector Milling Cutter Routing Kit Double Platform PCB Router Machine Dust Collector Milling Cutter Routing Kit

Large Image :  Double Platform PCB Router Machine Dust Collector Milling Cutter Routing Kit

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: RM-F328
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 1 month
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Single Platform PCBA Router Machine Platform: Double
Routing Kit: Milling Cutter Working Platform: 350*650mm
Driven Motor: Servo Motor Voltage: AC380V
Machine Dimension: 1220*1400*1300mm(L*W*H) Weight: 750KG
High Light:

pcb cnc router

,

pcba cutting machine

Milling Cutter Routing Kit Double Platform Dust Collector PCB Router Machine

Machine introduction



This device adopt a milling cutter to divide a multi-connected PCB board according to a pre-edited path on high speed operating. Replaces manual cutting, V-CUT or PUSH cutting defects, improves product quality and reduces scrap rate. This machine adopts human-machine interface WindowsXP operating system, simple and user-friendly interface design, automatic cutting path correction system, high pixel CCD program Production and block program and single-step program editing and modification, the PCB loading and unloading device of the two platforms working interactively can effectively reduce the waiting time of the machine, thereby achieving the ideal production efficiency.


Main features



1, Equipped with a high-pixel CCD magnifying lens, auxiliary program teaching and editing functions, improve accuracy and precision, and higher  resolution images.


2, Automatic MARK point positioning and correction system. The moving path has real-time display and simulated router tracking. The display is clear at a glance. The automatic alignment correction function has higher cutting accuracy. As long as the PCB is deviated within 3mm, machine vision can perform automatic routing. The calibration relaxes the accuracy requirements of the operator when placing the board and greatly improves the working efficiency.


3, The copying of the left and right worktables of the program, block copying, display, multi-angle connection board copying, single-step tracking modification function, and block editing modification function accurately simplify the program production time and improve editing efficiency.


4, The vacuum cleaner made of high-power imported fan and the high-voltage static elimination device of 10V have more ideal vacuuming effect and lower noise.

5, Tool life monitoring. After the cutter cuts a certain distance, it will automatically rise and fall to the position of another uncut blade. The up and down distance and frequency can be set according to the length of the blade to extend the life of the cutter.

6, The transparent safety door design makes the process clear at a glance. There are two ways to open the door: emergency stop and 50% deceleration for different customers to choose. Emergency stop is to prevent accidents during processing and provide a safe inspection operating environment. The deceleration of 50% is to facilitate the programmer to monitor the machining process when the program is being done.

7, The PCB substrate is placed by two-stage continuous sliding processing to reduce waiting time and increase production.


Sepcfication



Model RM-F328
Structure Single Spindle,double platform
Machine Size(mm) 1220*1400*1300mm(L*W*H)
Gross Weight 750kg
Dust collector size(mm) 780*650*1600mm
Dust Collection method Bottom collection
Work platform size 350*650mm
PCB positioning Fixtures, functional thimble
Driving system X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter
Routing Spindle Max60000rpm
Cutting speed 1-100mm/s
Cutting accuracy ±0.05mm
Repeat accuracy ±0.02mm
Axis moving speed 800mm/s
Z axis system Screw driven,dual guide
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Tool life control Software program control
Dust collector 2.2Kw,380V
Dust collector air pressure 4-6KG/cm³
Programming Online programming
Edit function Straight line, curve line, circule,arc
Security door Manual door
Error alarm Yes
Program method Self programing,camera controlled by keyboard and mouser





Dust Collector Specification



Size 780*650*1600mm
Power 2.2KW,3HP,AC380V
Noise <200dB
Air in/out size 6inch/8inch
Power wire 5*2.5²
Filter 16pcs

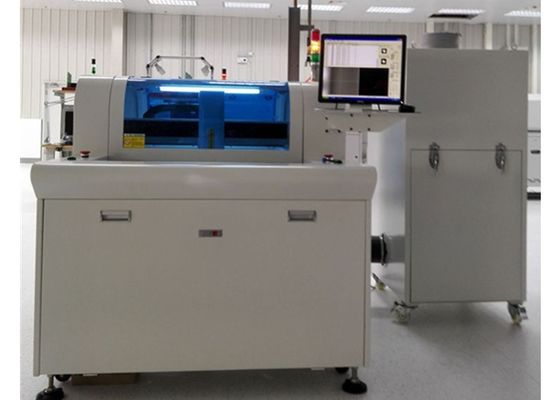

Machine details







Double Platform PCB Router Machine Dust Collector Milling Cutter Routing Kit 0
