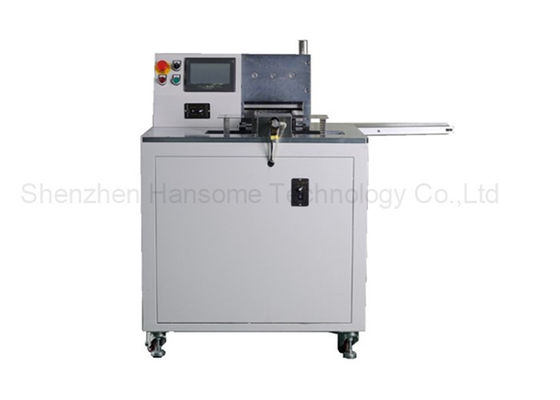

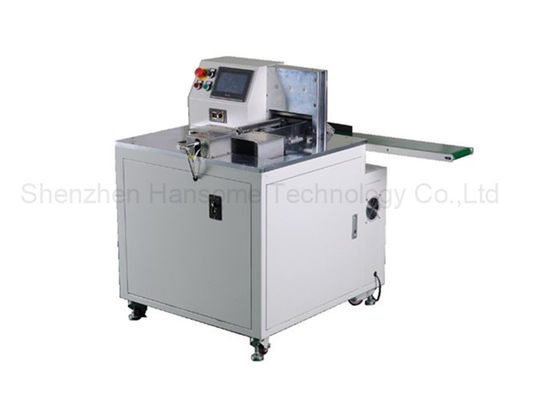

Servo Motor PCB Depaneling Equipment Automatic Guillotine Type Max 240mm Length

Servo Motor PCB Depaneling Equipment Automatic Guillotine Type Max 240mm Length
Servo Motor PCB Depaneling Equipment Automatic Guillotine Type Max 240mm Length Servo Motor PCB Depaneling Equipment Automatic Guillotine Type Max 240mm Length

Large Image :  Servo Motor PCB Depaneling Equipment Automatic Guillotine Type Max 240mm Length

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-A310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden pacakge
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 200sets per month
Detailed Product Description
Product Name: Auto Guillotine PCB Depanelizer Other Name: Auto Guillotine PCB Separator
Voltage: AC220V/110V Driven Motor: Step Motor And Servo Motor
Max Separating Length: 1-240mm Fiting Board Width: 50-150mm
Feeding: Automatic Separating: Automatic
High Light:

pcb board cutting machine

,

pcb depaneling machine

Max 240mm Length Servo Motor Automatic Guillotine Type PCB Depaneling Machine



Introduction



This machine is a guillotine type PCB depaneling machine, but it use the track to achieve automatic PCB board loading instead of the manual board loading, so it's a automatic machine, This machine use the human interface operating system, easy and convenient operation. It's a more efficient guollitine type board depaneling machine.



Features



1, The whole machine body is made of stainless steel, stable and durable.

2, The machine adopt two pcs linear blade, the balde length is 240mm, and board width is 50-150mm.
3, Human interface operating system.

4, Automatic board loading, automatic depaneling.
5, The machine can save the depaneling data, convenient for save and import different board parameters.
6, Vertical stand structure, easy to move.
7, Equipped with separating quantity counter.
8, Loading part using the servo motor, board fixing use the step motor.


Specification



Product name Automatic guillotine PCB depaneling machine
Model HS-A310
Part-up height Max 35mm
Part-down height Max 20mm
Air supply 5-7kgf/c㎡
Production ability 1800-4000pcs/H
Voltage AC220V/110V,50/60Hz
Separating width 1-240mm
Blade Two pcs linear guillotine blade
Blade adjustment distance Upper and down 3mm
Separating speed 1-300mm/s
V-cut thickness 0.6-2mm
Machine size 900*800*1100mm
Weight 150kg
