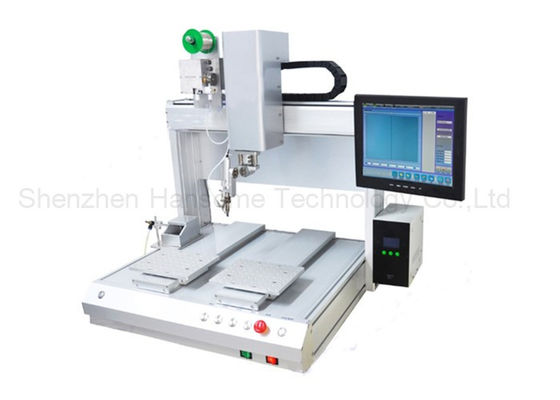

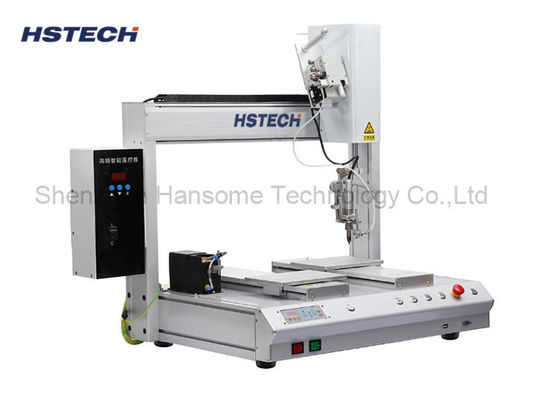

Switching System Auto Soldering Robot Two Workbenches Available With Display

Switching System Auto Soldering Robot Two Workbenches Available With Display

  • Switching System Auto Soldering Robot Two Workbenches Available With Display
  • Switching System Auto Soldering Robot Two Workbenches Available With Display
Switching System Auto Soldering Robot Two Workbenches Available With Display
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S5331R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Contact Now
Detailed Product Description
Product Name: Desktop Soldering Robot Other Name: Automatic Soldering Machine
Working Station: Dual Workbenches Soldering Head: Single Head/tip
Rotation: 360degree System: Manual Programming, Fast Swtiching
High Light:

auto soldering machine

,

automated soldering equipment

Two Workbenches Available for Switching System Auto Soldering Robot with Display



Features



1, With display which can fully watching the working process.

2, Two working station and fast swtichable soldering system, which can eliminate the time wasted on the assembly and dis-assembly fixtures.

3, Independently developed intelligent control system, it has powerful functions and simple operation interface.

4, With strong processlibrary, programming is simpler and faster.

5, Optional universal auxiliary fixture part.Fixtures can be formed on the site easily and quickly.

6, High quality and reliable mechanical structure,dont need maintenance.

7, High power heating controller ensures teh stability of continuous welding. Full time monitoring and control of temperature is processed by the robot control system.

8, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.

9, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.



Specification



Model HS-S5331R
Voltage AC110V/220V,50/60Hz
X/Y1/Y2/Z working range 500*300*300*100mm
R axis 360 degree
X/Y1/Y2/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Manual programmin with teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 60kg
Machine dimension

680*585*800mm



Application



The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields. Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.







Switching System Auto Soldering Robot Two Workbenches Available With Display 0



Switching System Auto Soldering Robot Two Workbenches Available With Display 1



Switching System Auto Soldering Robot Two Workbenches Available With Display 2
