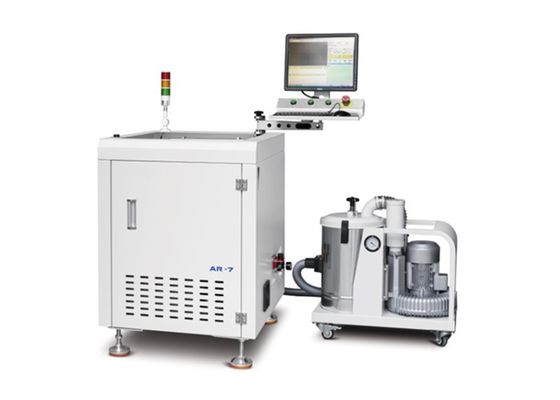

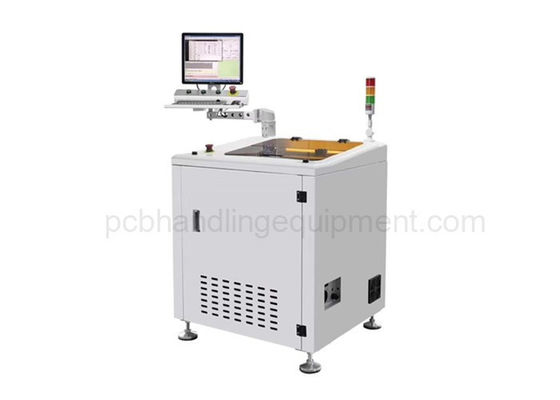

Small size 60000RPM Single Platform PCB Depaneling Separator Machine

Small size 60000RPM Single Platform PCB Depaneling Separator Machine
Small size 60000RPM Single Platform PCB Depaneling Separator Machine

Large Image :  Small size 60000RPM Single Platform PCB Depaneling Separator Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: AR-7mini
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 20~30 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Offline PCBA Depaneling Router Other Name: Automatic PCBA Separating Machine
Fixture: Needed Power Supply: AC380V, 50/60Hz
Working Table Size: 50x50~260x310mm(max) PCBA Loading Method: Manual
Dust Collector: Standard Configuration Machine Body: Stainless Steel
High Light:

60000RPM PCB Depaneling Separator Machine

,

SS PCB Depaneling Separator Machine

Single Platform 60000RPM PC Programming PCB Depaneling Separator Machine



Specification



Model AR-7 AR-7 mini
Power supply AC380V, 50/60Hz, 3KW
Working size 50x50~410x460mm(max) 50x50~260x310mm(max)
Loading mode Manual
Cutting spindel/speed 5000~60,000 rpm
PCB thickness 0.4-4mm
Separating speed 1-100mm/s
Cutting accuracy ±0.05mm
Fixing type Fixtures
Programing Visioin teaching, inline programing
Milling kit φ0.8~φ3.0 right side ratation, shank Tungsten steel
Dust collection method Bottom dust collection
Dust collector 3 phase, 380V, 1.2KW
Noise <75dB
Control system Industrial PC
Spindle brand Germany brand, Sycotec 4025
Servo motor A5 series
Motion control 4 axis motion control board
Lead screw C5 grinding screw lead
Linear guide P rank silence guide
Camera Germany brand Imaging 40W industril camera
Machine size 700*800*930 mm 500*650*930mm
Screen
17inch



Features



1, Offline automatic separating.

2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.

3, Customized fixtures.

4, PC and CCD visual system.

5, Programming with compensation and dust collection.

6, Available for max 410-510mm size PCBA.

7, Flexible for cutting two differenct type products.

8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).



Small size 60000RPM Single Platform PCB Depaneling Separator Machine 0

Small size 60000RPM Single Platform PCB Depaneling Separator Machine 1

Small size 60000RPM Single Platform PCB Depaneling Separator Machine 2
