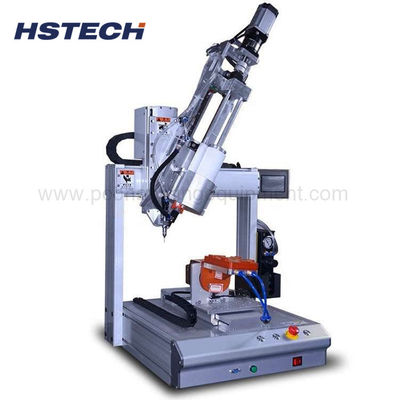

350W 300mm/s AB Glue Single Platform Glue Dispensing Machine

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-D331AB

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiable
Packaging Details:	Wooden package, with foam
Delivery Time:	5~7 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week

Contact Now

Detailed Product Description

Product Name:	AB Glue Dispensing Machine	Other Name:	4 Axis Glue Dispensing Machine
XYZ Working Range:	300300100mm	XYZ Speed:	Max 300mm/s
Glue Mixing Ratio:	1:1-10:1	Dispensing Precision:	Glue Amount±1%, Glue Proportion±1%
Drive System:	Stepping Motor + Timing Belt	Repeat Accuracy:	±0.02mm
High Light:	Single Platform Glue Dispensing Machine , 350W Glue Dispensing Machine , 300mm/s Automatic Glue Dispenser

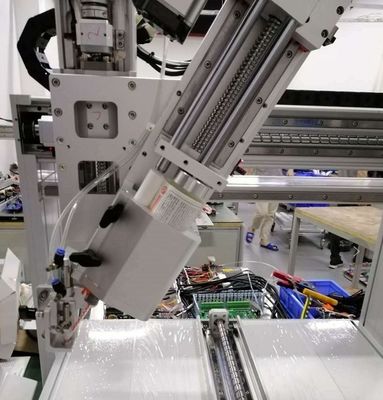

AB Glue Mixing Single Platform Fixture Needed Glue Dispensing Machine

Machine feature

1. PC computer LCD screen operation, easy to program, easy to learn and understand.

2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path.

3. The volume of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glue can all be programmed.

4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked.

5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product.

6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heating temperature control devices, etc.

Specification

ITEM	SPEC
Glue Mixing Ratio	1:1-10:1/Customizable
Dispensing Speed	10-150g/5s(based on 1:1 glue proportion)
Dispensing Precision	Glue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range	300300100mm(Z axis can be rotated)
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeatability	±0.02mm
Pattern	Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision	Amount±1%, Ratio:±1%
Operation Method	Auto
Programming	Teach Pendant
Control	Board card
Leak-proof Function	Valve with Vacuum Device
Weight	65kg
Dimension(LWH)	716585645mm
Power Supply	220V 50-60Hz 350W
