| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-C600S |
| Minimum Order Quantity: | 3 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~14 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | Link Conveyor | Other Name: | SMT Conveyor |
|---|---|---|---|
| Conveyor Length: | 600mm Or Specify | Transport Belt: | Green Color ESD Belf |
| Belt Thickness: | 1.0 Mm | Voltage: | 1P AC 110V/220V 50/60HZ |
| Warranty: | 1 Year | Packing: | Wrap, Wooden Box |
| High Light: | Touch Screen SMT PCB Conveyor,600mm Length SMT PCB Conveyor,AC220V SMT Link Conveyor |
||

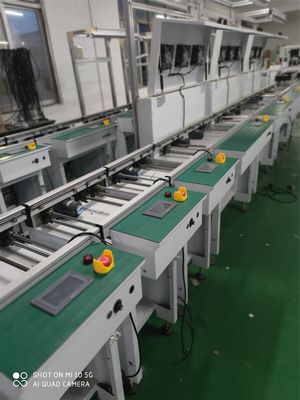

Automatic Width Adjust with Motor Touch Screen Control SMT PCB Conveyor
Specification
| Model | HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Motor adjustment | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
Features

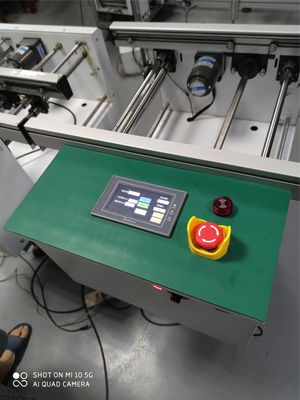

1, Touch screen control.
2, Motorized width control.
3, 600mm length or customization.
4, Stable machine structure, made of stainless steel.
5, Standard 390mm PCB width, hand crand width adjustment.
6, Inspection function by button.
7, Optional dust cover, tower light lamp, two section control, etc.
8, Customized requirement available.
9, SMEMA signal for inline connection.
