| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SZ460 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 12~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Turn Conveyor | Other Name: | PCB Turning Board Handling Machine |
|---|---|---|---|
| Power Supply: | AC100-230V,50/60Hz | Control: | PLC |
| Operation: | LED Button | Signal: | SMEMA |
| High Light: | 350mm Width PCB Handling Machine,AC230V PCB Handling Machine,5s Cycle Smt Assembly Equipment |
||

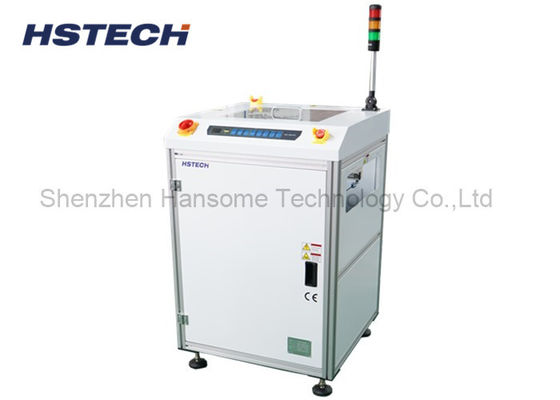

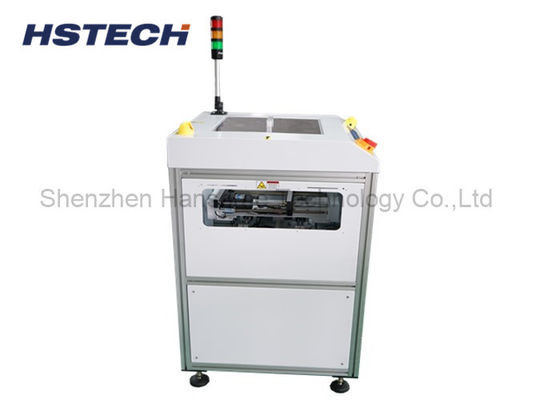

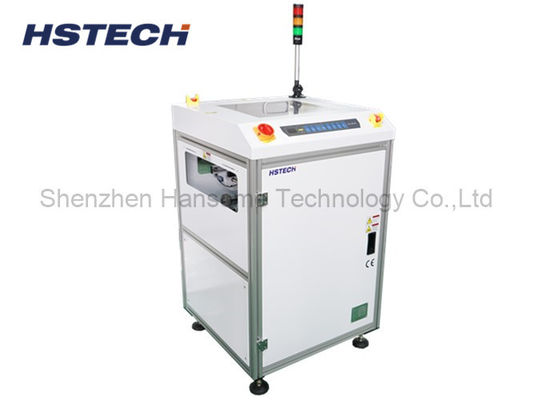

SMT Line 90degree Top Cover PCB Turn Conveyor Board Handling Equipment
Introduction
This machine used in the special SMT line with Corner, for changing the PCB flow direction.
Features
1, Adjustable 350mm PCB width.
2, Customized fixes rail selection.
3, Used for Changing the PCB transporting direction in 90.
4, Soft LED button control, traditional but easy operation.
5, Top side safety transparent cover, operation can watch the whole working process.
6, Use hiwin linear guide and lead screw to make smooth and precise rotation.
7, Minimize the transfer gap between conveyors.
8, PCB traffic flows can be customized.
8, Smoothly lead screw for adjust the pcb width.
9, SMEMA compatible.
Specification
| Product name | PCB Turn Conveyor |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.4mm |
| Signal | SMEMA |
| Model | HS-SZ350 | HS-SZ460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 700*750*1200mm | 840*890*1200mm |
| Weight | 150kg | 180kg |
