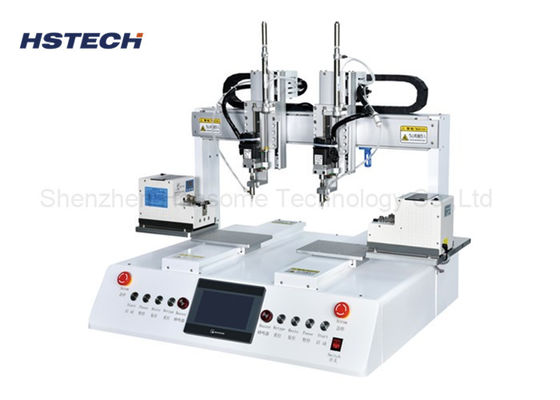

6 Axis Dual Head Suction Screw Feeder Touch Screen M6

6 Axis Dual Head Suction Screw Feeder Touch Screen M6
6 Axis Dual Head Suction Screw Feeder Touch Screen M6 6 Axis Dual Head Suction Screw Feeder Touch Screen M6

Large Image :  6 Axis Dual Head Suction Screw Feeder Touch Screen M6

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-DH6331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Screw Locking Machine Feeding: Suction Feeding
Axis: 6 Axis Screws Compatible: M1-M6, Or Customized
Moving Range: 500*300*300*100mm Material: Main Aluminum
Port: Shenzhen Oem: Yes
High Light:

Dual Head Suction Screw Feeder

,

6 Axis Screw Feeder

,

M6 Suction Feeding Screw Locking Machine

Touch Screen Control Dual Head Suction Screw Feeder Auto Screw Locking Machine

Introduction

The screw machine is a dual screw driver, dual platform, and suction screw feeder automatic screw locking machine, it use touch scrren and manual moving the screw head to do the location, its a much easy programming type, save much programming time. Its a new type screw locking machine which can replace the traditional manual teaching pandent programming machine, it's widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.

Specification



Model HS-DH6331
Production name Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z) 600*300*300*100*100mm
X/Y1/Y2 axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension8 880*585*800mm
Machine weight 120kg



Main parts brand



1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell



Features


1, Suction type feeding, with single screw feeder and single locking head.
2, Desktop and visible operation, can connect the automatic production line.
3, 6 Axis operation, moving range 600*300*300*100*100mm.
4, Support multiple screw bins in suction mode.
5, Double working station, improve the production efficiency and reduce labor cost.
6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).
7, Easy operation, operator can operate several machines at the same time.
8,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

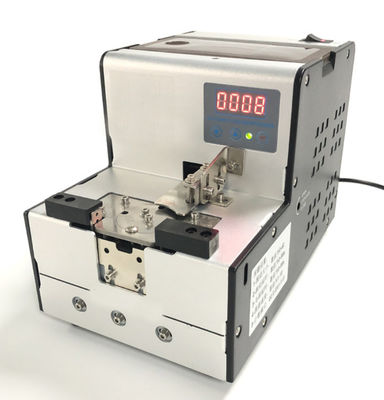

6 Axis Dual Head Suction Screw Feeder Touch Screen M6 0

6 Axis Dual Head Suction Screw Feeder Touch Screen M6 1
