| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-NK250 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | NG OK PCB Unloader | Certification: | CE |
|---|---|---|---|
| Material: | Stainless Steel | Structure: | Belt Conveyor |
| Warranty: | 1 Year | Application: | SMT PCB Assembly Production Time |
| PCB Thinckness: | Min 0.6mm | Pitch Selection: | 1-4（10mm Pitch） |
| Power: | 0.05kw | Air Consumption: | Max 15L/min |
NG OK Unloader PCB Handlind Equipment with Mitsubishi PLC Control System and SMEMA Signal
This machine is used behind the AOI, to collect OK and NG PCBs separately after signals of AOI equipment.
Features
1. PLC program control.
2. Strong, firm
3. Optional control button or touch screen control up to customers.
4. Top and bottom pneumatic clamps to secure magazine rack.
5. No PCB breakage guarantee during loading&unloading.
6. Automatic NG/OK board separate store NG/OKboards.
7. NG/OK signal from the upstream AOI machine.
8. Self programmed machine error display,different errors have different code,each code has relevant maintenance instruction which paste in the back side of machine door.
9. Enclosed machine design for safety operation.
10. Three color tower light display.
11. SMEMA compatible.
Specification
| Model | HS-250-NK | HS-330-NK | HS-390-NK | HS-460-NK |
| Power Supply | AC110V/AC220V 50H60Hz | |||
| Air Supply | 5kgf/C M2 | |||
| PCB Size(mm) | 50*50~330*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| PCB Direction | left to right or right to left | |||
| Magazine Size(mm) | 335*320*563 | 460*400*563 | 535*460*570 | 535*530*570 |
| Step pitches(mm) | 10,20,30,40 | |||
| Transport Height(mm) | 900±20 | |||
| Transmission Speed | 10m/s | |||
| Main Motor Power | 420W | |||
| Machine Size(mm) | 1510*1530*1250 | 1910*1630*1250 | 2160*1760*1250 | 2160*1900*1250 |
| Weight(kgs) | 220 | 280 | 340 | 380 |
Operation diagram

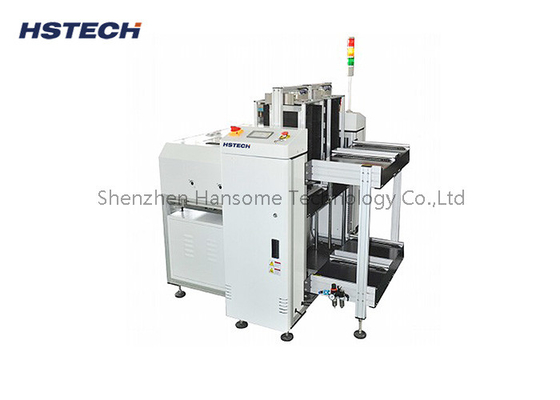

Product physical picture
Application
It is used in the AOI backend of SMT and DIP production lines to receive signals from AOI and automatically distinguish and store NG/OK PCBs. It is suitable for machines with PCB specifications of 50 * 50~330 * 250. Other sizes of PCB boards can be customized according to the customer's actual situation, or due to site size limitations, they can also be customized according to the actual situation
