| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-ARX-811 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Inline PCBA Router Machine | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | Relay Brand: | Schneider |
| Optoelectronic Switch: | OMRON | Material: | Aluminum Alloy |
| Condition: | New | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Type: | Automatic |

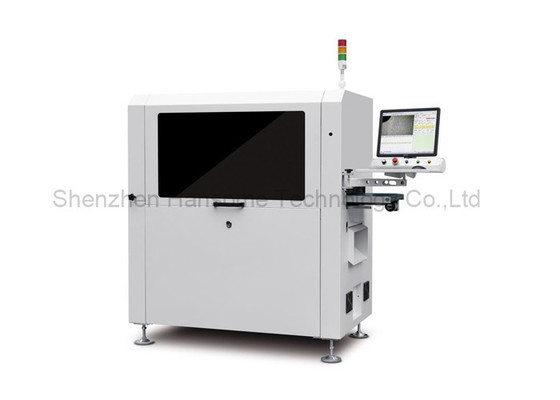

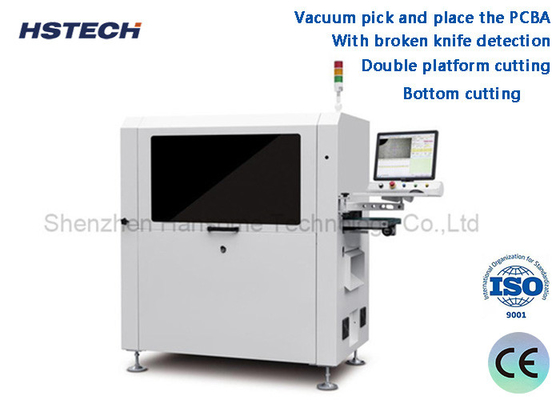

Double Platform Cutting With Broken Knife Detection Inline PCBA Router Machine
Introduction
This machine is a inline automatic PCBA routing machine, using shank Tungsten steel milling cutter as the spearating tool, work with customized fixture to fix the PCBA, also clear up the dust with a dust collector after cutting, ESD belt to transport to downstream device.
Features
1, Vacuum pick and place the PCBA.
2, Bottom cutting.
3, Double platform cutting.
4, With broken knife detection.
5, Connect the automatic production line.
6, SPC statistics function and match the ERP system.
7, Can be equipped with automatic tool change, explosion-proof function of vacuum cleaner and air volume monitoring function.
| Model | ARX-811 | |
| Max PCB size | 260x340mm | |
| Min PCB size | 50x50mm | |
| PCB thickness | 0.4-6mm | |
| Transmission height | 900±50mm | |
| Transport direction | Left to right | |
| Transportation speed | 1500mm/s(max) Adjustable | |
| Loading mode | Section-type transportation guide rail | |
| Rail width adjustment | Automatic | |
| Communication interface | SMEMA | |
| PCB positioning | Fixtures positioning | |
| Picking system | Vacuum suction pick up | |
| Cutting spindel/speed | 60,000 rpm/min, Germany brand(optionnal 100,000 rpm/min, Germany brand) | |
| Cooling type | Self cooled type | |
| Automatic tool change | optional | |
| Break knife check | Yes | |
| Separating speed | 5-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel | |
| Repeat positioning accuracy | ±0.1mm | |
| Coordinate moving speed | 1000mm/s | |
| Out plate type | ESD belt transportation / batch panel forwardrding unit | |
| Waste collection | Waste cupboard collection | |
| Procedure programing | GERBER drawing import /editing program through visual system | |
| Air supply | 5-8 kg/cm³ | |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Machine size | 1500x850x1600 mm | |
| Weight | Appro. 800kg | |
Machine size
Details
Bottom size dust collector.
Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,
compensation and positioning, with great stability and anti-distrubance capacity.
Omniponent vacuum suction chuck for picking, placing , unloading, and production.
Composite unloading system, used the ESD antistaic belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.
