Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-UD330 |
Minimum Order Quantity: | 1set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package |
Delivery Time: | 15~20 work days |
Payment Terms: | D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets per month |
Product Name: | PCB Unloader | Other Name: | SMT Line Unloader |
---|---|---|---|
PCB Size: | 50*50~450*330mm | PCB Unloading Time: | Approx 6 Seconds |
Magazine Change Over Time: | Approx 30 Seconds | Power Supply: | AC220V, 50/60Hz |
PCB Thickness: | Min 4mm | Communication: | SMEMA |

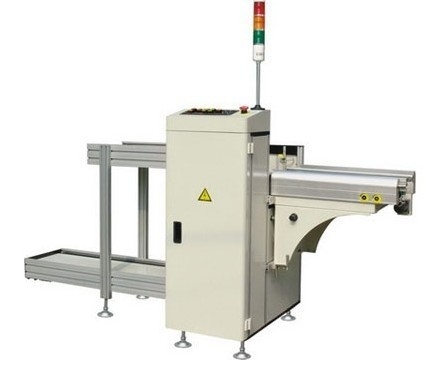

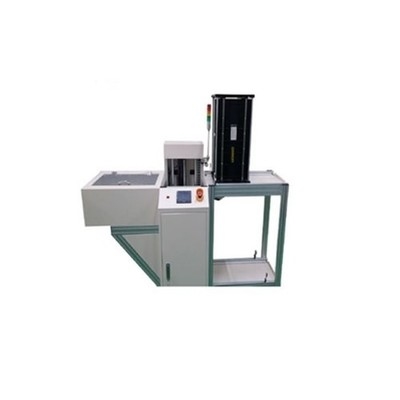

3 Magazines 330mm Width LED Button/ Touch Screen Control PCB Link Unloader
Application
This PCB unloader machine used in the end of SMT production line,it used for collecting PCBs into the magazines.
Features
1, Mitsubishi PLC.
2, ZD motor driven.
3, Thicker transporting conveyor belt.
4, 3 magazines for changing over, top side one magazine, button side 2 magazines.
5, Precision pusher push the pcbs to the magazines
6, Top and bottom pneumatic clamps to secure magazine rack.
7, SMEMA compatible.
Specification
Function | This unit is used for unloading the PCBs. |

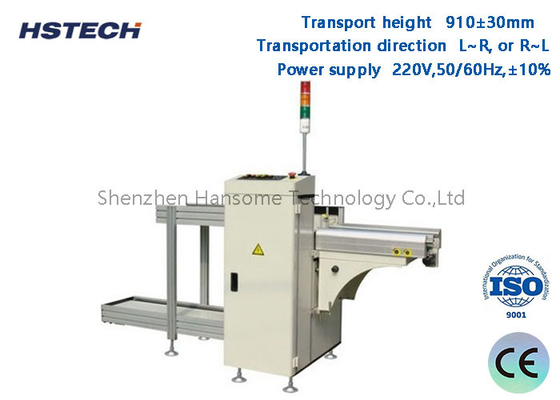

Transport height | 910±30mm |
PCB loading time | Approx 6 seconds |
Magazine change over time | Approx 30 seconds |
Transportation direction | L~R, or R~L |
Operation | Front operation |
Track fixed side | Front side(or specify) |
Power supply | 220V,50/60Hz,±10% |
Air pressure | 4-6bar |
PCB thickness | Min 0.4mm |
Magazine qty | Upper side:1 pc,bottom side: 2 pc |
Conveyor speed | 0.5-20M/min or customized |
Pitch selection | 1-4(10mm pitch) |
Signal | SMEMA |
Model | HS-UD250 | HS-UD330 | HS-UD390 | HS-UD460 |
Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
Machine dimension | 1900*800*1200mm | 2320*880*1200mm | 2620*940*1200mm | 2620*1080*1200mm |
Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
Weight | 140kg | 220kg | 280kg | 320kg |
