| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-206 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
| Name: | Moving Blade Type PCB Separator Machine PCB Separator PCB Depanelize | Other Name: | SMT Automatic PCb Cutting Machine |
|---|---|---|---|
| Pcb Length: | Max 600mm, Or Customized | Type: | Blade Moving To Cut Pcb |
| Application: | Cutting All Kinds Of PCb With V-groove | Blade Material: | Imported SHD61 High Speed Steel |
| Quality: | Durable,high Rank | Warranty: | 1 Year |

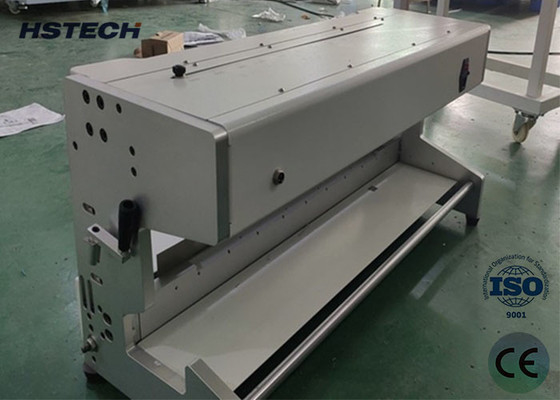

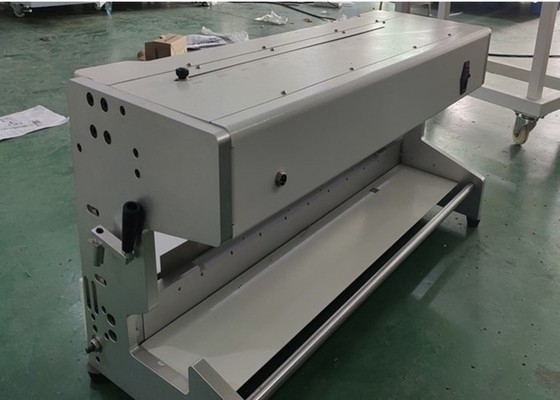

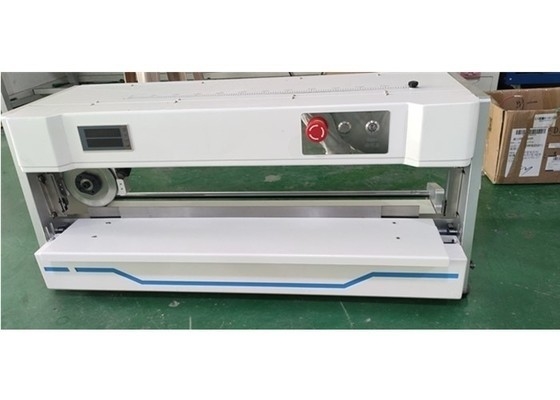

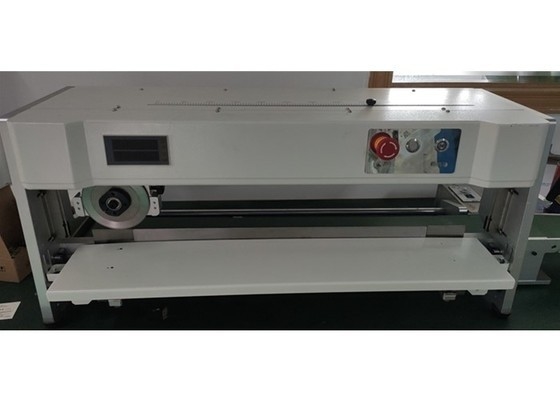

Moving Blade Type PCB Separator Machine PCB Separator Machine 600mm Traveling Distance With Light Curtain
Introduction
This machine adopt Japan brand high speed steel balde as the cutting tool, use circular and linear blade combination to finish the separating process, linear blade fix the PCB on the bottom, and circular blade moving to cutting the entire printed circuit into small pcs PCB. It's a eady and convenient PCB separating machine, suitable for cutting all kinds materials boards with the V-groove, like the aluminum board, fiber-glass board, LED board,etc.
Features
1, The upper and lower blades are made of HKD11 Japan brand high-speed steel, which can be sharpen many times and repeatedly use.
2, Traveling distance max at 600mm, if need longer also can be customized, the height of upper circular blade can be adjusted range at 0-5mm, the user's manual will teach how to do the adjustment.
3, Maximum board cutting width is unlimited, best at 50-200mm.
4, The whole machine is made of stainless steel structure, very stable and ensure the cutting precision.
5, Cutting speed(circular blade moving speed) can be setted freely.
6, Digital display show the cutting speed, and production quantity.
Specification
| Model | HS-203 | HS-206 |
| Principle | Linear blade insert into board V-slot, circular blade moving cutting | |
| Blade | Bottom linear balde, upper circular blade | |
| Voltage | AC110V/220V 50/60Hz | |
| Blade size(circular blade) | ϕ125mm*30mm*3mm | |
| Blade size(linear blade) | 420mm×65mm×6mm | |
| Max cutting length | 5~400mm | 5~600mm |
| PCB thickness | 0.8~3mm | |
| Separation speed | 300~500mm/second(adjustable) | |
| Separation width | Best 1~200mm | |
| Components height | ≤32mm( or customized) | |
| Power | 60W | |
| Machine dimension | 710x450x420mm | 900x450x420mm |
| Weight | 55kg | 75kg |
Application
(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)
