| Product Name: | PCB Unloader | Other Name: | SMT Line Unloader |
|---|---|---|---|
| PCB Size: | 50*50~450*330mm | PCB Unloading Time: | Approx 6 Seconds |
| Magazine Change Over Time: | Approx 30 Seconds | Power Supply: | AC220V, 50/60Hz |
| PCB Thickness: | Min 4mm | Communication: | SMEMA |

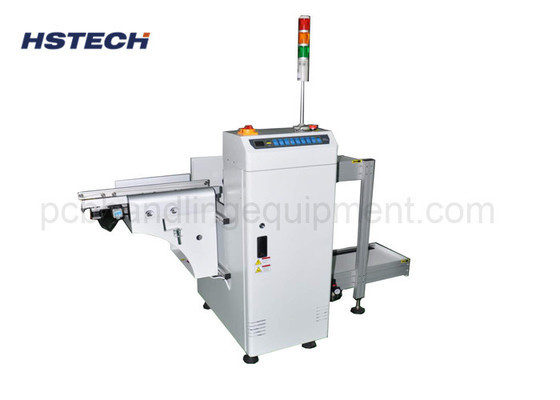

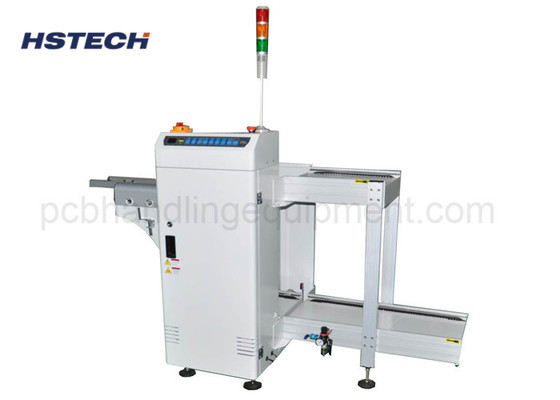

ZD Motor Driven Tower Light PCB Unloader Transport Height 910mm
Features
1, Mitsubishi PLC
2, ZD motor driven.
3, Thicker transporting conveyor belt.
4, 3 magazines for changing over, top side one magazine, button side 2 magazines.
5, LED button control mode with 3 lolor light display.
6, Stainless steel and aluminum profile machine structure, stable and easy for maintenance.
7, Smooth and parallel width adjustment with hand crank.
8, Precision pusher push the pcbs to the magazines
9, Top and bottom pneumatic clamps to secure magazine rack.
10, SMEMA compatible.
Application
This PCB unloader machine used in the end of SMT production line,it used for collecting PCBs into the magazines.
Specification
| Function | This unit is used for unloading the PCBs. |

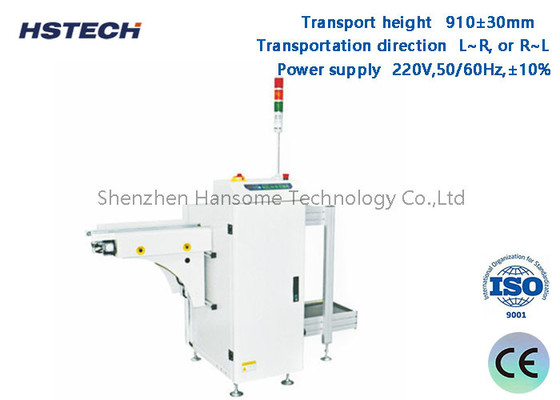

| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine change over time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Pitch selection | 1-4(10mm pitch) |
| Signal | SMEMA |
| Model | HS-UD250 | HS-UD330 | HS-UD390 | HS-UD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1900*800*1200mm | 2320*880*1200mm | 2620*940*1200mm | 2620*1080*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 220kg | 280kg | 320kg |
