| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Topgrade Conveyor | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Signal: | SMEMA | Application: | Electronic Assembly |
| OEM/ODM: | Available | Power Consumption: | 200W |

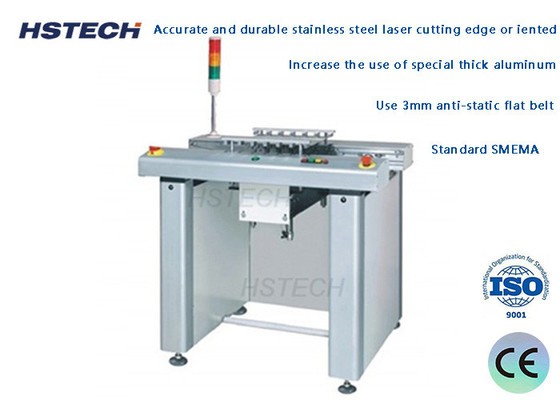

Touch Screen Topgrade Conveyor 3mm Anti-Static Flat Belt FOR SMT Production Line
Main Function:
This machine is used to connect with SMT production line.
Discription:
1. Increase the use of special thick aluminum
2. Accurate and durable stainless steel laser cutting edge or iented
3. Smooth parallel to the width of the screw adjustment method
4. Strengthening the structural design to improve the stability of the equipment
5. use 3mm anti-static flat belt
6.Standard SMEMA
Paramter:
| Type | TC-250A | TC-300A |
| Power Supply | AC220/AC110V 50/60HZ | AC220/AC110V 50/60HZ |
| Optional | 1,light 2, fan 3, magnnifying | 4, dust proof cover 5,inspection platform |
| PCB Size(mm) | 445*50~350 | 535*50~460 |
| Transport direction | left to right or right to left | left to right or right to left |
| Transmission Speed | 1-12m/min | 1-12m/min |
| Transport Height(mm) | 900±20 | 900±20 |
| Trick fixed side | front side or back side | front side or back side |
| Motor power | 12W | 12W |
| Machine dimension | 500*745*900 | 1000*745*900 |
| Weight | 50 | 80 |
About Packing:
