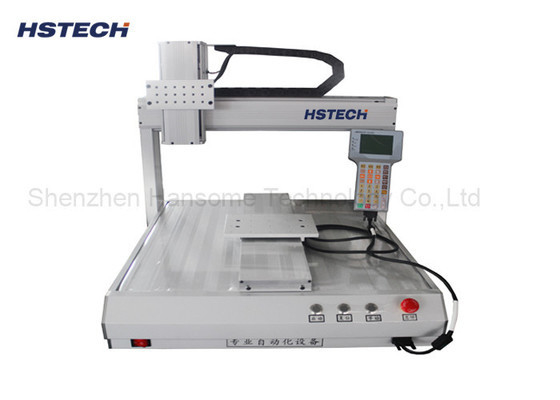

PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine

PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine

  • PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine
  • PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine
PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-D441
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: 4Axis Glue Dispensing Machine Warranty: 1 Year
Control: Touch Screen Relay Brand: Schneider
Optoelectronic Switch: OMRON Material: Aluminum Alloy
Condition: New Signal: SMEMA
Application: Electronic Assembly Color: Silver
Control System: PLC OEM/ODM: Available
Power Consumption: 200W Type: Automatic



PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine



Machine feature


1. PC computer LCD screen operation, easy to program, easy to learn and understand;


2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path;


3. The size of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glu e can all be parameterized;


4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked;


5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product;


6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heatingtemperature control devices, etc.


7. Optional 1-4 head dispensing device, multiple glue guns at the same time to double the work efficiency;


8. The software has functions such as regional display, translation rotation operation, etc.


9. Adopt trapezoidal acceleration and deceleration, speed preview, micro line interpolation and other technologies;


10. Configure high-speed, low-noise Japanese stepping motor with precise positioning, quick response,stable performance and long service life.


Specification
Model HS-D441
Power supply 110V/220V 50-60Hz 350W
Glue Mixing Ratio 1:1-10:1/Customizable
Dispensing Speed 10-150g/5s(based on 1:1 glue proportion)
Dispensing Precision Glue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range 400*400*100mm(Z axis can be rotated)
XYZ Speed Max 300mm/s
Drive System Stepping Motor + Timing Belt
Repeatability ±0.02mm
Pattern Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting Precision Amount±1%, Ratio:±1%
Programming Teach Pendant
Control PLC
Leak-proof Function Valve with Vacuum Device
Document Support CAD, CorelDRAW
Weight 40kg
Dimension(L*W*H) 616*685*645mm



Application

Epoxy Glue Dispensing Machine Teach Pendant Stepping Motor With Vacuum Device 0

PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine 1



About Packaging
PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine 2
PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine 3
PC Computer LCD Screen Operation Special Dispensing Controller 4Axis Glue Dispensing Machine 4
