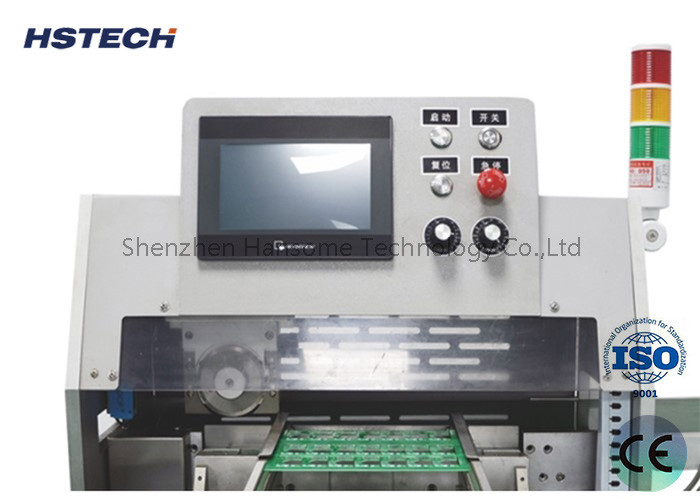

PLC Control Auto Feeding PCB Separator with ESD Transporting Belt

PLC Control Auto Feeding PCB Separator with ESD Transporting Belt

  • PLC Control Auto Feeding PCB Separator with ESD Transporting Belt
PLC Control Auto Feeding PCB Separator with ESD Transporting Belt
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-A306
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Auto Feeding PCB Separator Other Name: Auto Feeding V-CUT PCB Separator
Voltage: AC220V/110V Control: PLC
Max Separating Length: 50-230mm Loading: Manual
Feeding: Automatic Separating: Automatic

PLC Control Auto Feeding PCB Separator with ESD Transporting Belt



Introduction



This machine is a manual board loading machine automtic feeding balde moving separating machine, the main feature is the adopt the PLC control, using the motor to drive the boards to achieve automatic feeding, when the boards arrive the separating side, the inductor will send a signal to the PLC, so it will give a order to the balde, then the blade will move and start for depaneling. It's a more efficienct separator than the manual feeding V-Cut PCB separator, which can save much more boards feeding time, also the machine equipped with the ESD transporting belt, so the operator just wait for collecting the boards after separating.



Features



1, PLC control to achieve the automatic board loading.

2, Manual board loading, autoamtic board feeding.
3, Inductor send signal to the PLC to order the blade moving for separating.

4, Save the trouble for manual V-cut groove feeding, increase the efficiency, avoid mistakes for manual V groove location.
5, The machine equipped with a automatic ESD transport belt, it will transoport the boards to the production line automatically after separating.
6, The PCB or thin plate without v-grooved can customized tray and prevent stay positioning device.


Specification



Product name Auto feeding blade moving PCB separator
Model HS-F306
Part-up height Max 35mm
Part-down height Max 20mm
Air supply 0.6-0.8Mpa
Output 12.5tons(gross)
Voltage AC220V/110V,50/60Hz
Separating width 50~230mm
Blade material Import high quality high speed steel tool
Separating speed 1-300mm/s
V-cut thickness 0.3-3.5mm
Machine size 700*650*620mm
Weight 86kg



Application boards



Auto Feeding V-Cut PCB Separator with ESD Belt Transport 0

Auto Feeding V-Cut PCB Separator with ESD Belt Transport 1
