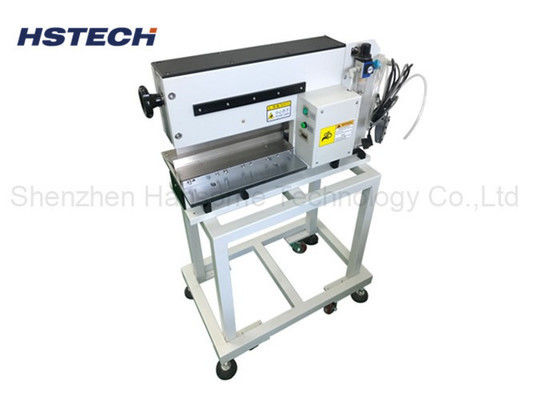

0~ 360mm Pneumatic PCB Depanelizer with High Quality Guillotine Blade

Product Details:

Place of Origin:	China
Brand Name:	HSTECH
Certification:	CE
Model Number:	HS-310L

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden package
Delivery Time:	7~9 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Pneumatic PCB Depanelizer	Other Name:	V-CUT PCB Separator
Voltage:	AC220V/110V	Pcb Length:	0~ 360mm
Depaneling Balde:	High Quality Guillotine Blade	Warranty:	1 Year

Pneumatic Driver Solenoid Vale Controlled, V-CUT PCB Separator

Introduction:

This machine is used for cutting FR4, Aluminum board, Cooper board, fiber -glass board, adopts high quality and durable linear guillotine blade, driven by the pneumatic,feet step the feet switch to finish the depaneling operation.

The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process,improve products quality

This machine is a powerful machine for separating the V-cut line connectted PCB panels, ultra low cutting force stress, and no glitch.

Features:

1, Used for separating the V-cut line connect PCB boards.

2, Power cutting, no glitch and ultra low force stress.
3, Pneumatic driver ,solenoid vale controlled, high speed.

4, The up and lower blade height are adjustable , Gap for insertion of the PCB board can easily be adjusted by adjusting knob in the top side

of the machine.

5, Lower blade height adjust front and real portion can be adjusted separately, don't need shim , which make change and adjust blade more easy . The blade can sharpening many times, lower cost .

6, The PCB or thin plate without v-grooved can customized tray and prevent stay positioning device.

7, Operation and maintenance can be done also by unskilled personnel .

Specification:

Product name	PCB depanelizer
Model	HS-310L
Part-up height	Max 39mm
Part-down height	Max 19mm
Air supply	5Kgf/cm
Output	12.5tons(gross)
Efficient cutting length	1-360mm
Linear blade size	36043.56mm
PCB thickness	0.1mm~2.0mm(With v grove) 0.1mm ~1.0mm(Without V grove )
Blade material	Import high quality high speed steel tool
Separating speed	1-300mm/s
V-cut thickness	0.3-3.5mm
Air consumption	200-400(L/min)
Machine size	700325400mm
Weight	130kg
Suitable board	All V-cut boards
