| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-RM-F500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Product Name: | Tabletop PCBA Router Machine | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | Relay Brand: | Schneider |
| Optoelectronic Switch: | OMRON | Material: | Aluminum Alloy |
| Application: | Electronic Assembly | Control System: | PLC |
| OEM/ODM: | Available | Power Consumption: | 200W |
Max40000rpm Touch Screen Tabletop PCBA Router Machine for Depaneling Straight Line
Machine introduction:

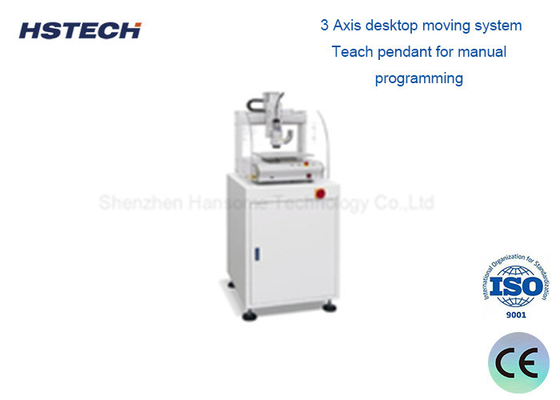

This machine RM-F500 is a vertical PCB router machine, the machine body including two parts, the bottom part is the structure and the upper part is a tabletop 3 axis moving PCB separating system. The separating system use the teach box for manual programming, so need manual set every mark points, it's a cost effective PCB router system.
Features:
1, 3 Axis desktop moving system.
2, Teach pendant for manual programming.
3, High speed routing spindle, speed at 20000~40000rpm.
4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.
5, Upper side dust collector method, make sure the platform clean.
6, Suitable for depaneling straight line, arc, and circular connectted boards.
7, Enclosed operating room, security and low noise.
| Model | RM-F500 | ||
| Structure | Single Spindle,single platform | ||
| Efficienty cutting length | 270*220mm(x*Y) | ||
| Cutting types | Straight line, arc, circular | ||
| Moving speed | X/Y/Z axis 300*250*90mm/s | ||
| Dust Collection method | Upper collection | ||
| Spindle | 20000~40000rpm | ||
| Routing Spindle | Max40000rpm | ||
| Cutting speed | 1-100mm/s adjustment | ||
| Cutting accuracy | ±0.03mm | ||
| Repeat accuracy | ±0.01mm | ||
| Programming | Teach box | ||
| External connect | USB | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Power supply | 220V/110V,50/60Hz | ||
| Board thickness | 0.8-3mm | ||
| Dust collector size | 600*500*500mm | ||
| Dust collector power | 750W,1HP | ||
