| Product Name: | PCBA Router Machine | Color: | White |
|---|---|---|---|
| Platform: | Double | Cutting Tool: | Milling Cutter |
| Operation System: | Windows | Scrap Collect: | Dust Collector |
| Warranty: | 1 Year | Voltage: | AC380V 50HZ |

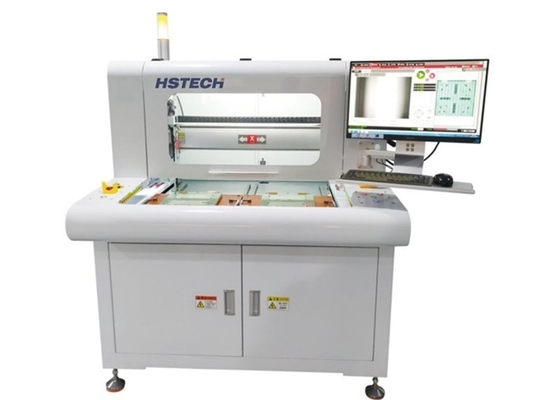

RT350/360/360A/380A Twin Platform Offline PCB Router with Maximum Spindle Speed of 60000rpm
Main Features
Chinese/English software operation system
German brand Basler high speed camera whole board photography programming mode
Equipped with auto routing tool(bit) changing,break tool detection, tool height correction function

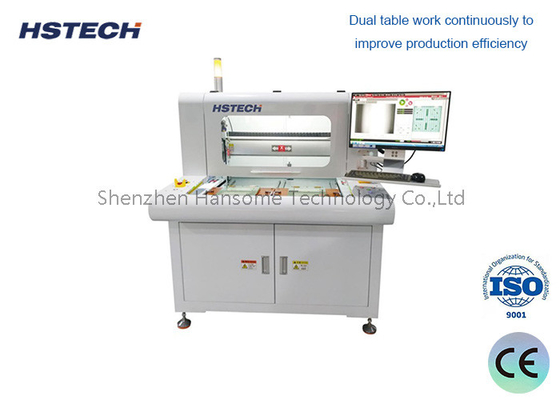

Dual table work continuously to improve production efficiency
Specification
| Machine Model | RT350 | RT360 | RT360A | RT380A |
| PCB cutting size | 340*360MM | 340*360MM | 340*360MM | 350*250MM |
| Cutting object | Lines, points, arcs, circles, etc | Lines, points, arcs, circles, etc | Lines, points, arcs, circles, etc | V-groove,stamp hole,circular point,etc |
| Cutting table | Twin table | Twin table | Twin table | Twin table |
| Cutting accuracy | ±0.08MM | ±0.05MM | ±0.05MM | ±0.05MM |
| Repeat accuracy | ±0.015MM | ±0.01MM | ±0.01MM | ±0.01MM |
| Max axis moving speed | X,Y1,Y2:1000mm/s,Z axis:800mm/s | X,Y1,Y2:1000mm/s,Z axis:800mm/s | X,Y1,Y2:1000mm/s,Z axis:800mm/s | X,Y1,Y2:1000mm/s,Z axis:800mm/s |
| Spindle | Chinese brand | Chinese brand/NSK spindle (optional) | Japan NSK/Germany Sycotec | V-blade+chinese brand spindle |
| Tool change mode | Manual tool change | Manual tool change | Automatic | Manual tool change |
| Spindle routing speed | MAX:60000rpm | MAX:60000rpm | MAX:60000rpm | MAX:60000rpm |
| Tool detection | Automatic tool sinking, tool breaking | Automatic tool sinking, tool breaking | Automatic tool sinking, tool breaking and sliding tool detection | Automatic tool sinking, tool breaking and sliding tool detection |
| Cutting speed | 5～100mm/s adjustable | 5～100mm/s adjustable | 5～100mm/s adjustable | 5～100mm/s adjustable |
| PCB cutting thickness | 0.3-3.0MM | 0.3-3.0MM | 0.3-3.0MM | 0.3-3.0MM |
| Programming method | Whole panel photography,picture drawing line teaching | Whole panel photography,picture drawing line teaching | Whole panel photography,picture drawing line teaching | Whole panel photography,picture drawing line teaching |
| Control method | PC precision 4 axis control | PC precision 6 axis control | PC precision 6 axis control | PC precision 6 axis control |
| X,Y1,Y2,Z driven motor | Chinese brand servo driver | PanasonicA6 servo driver | PanasonicA6 servo driver | PanasonicA6 servo driver |
| Suitable routing bits size | 0.8～3.0MM | 0.8～3.0MM | 0.8～3.0MM | 0.8～3.0MM |
| Power supply | AC220V 50/60HZ single phase | AC220V 50/60HZ single phase | AC220V 50/60HZ single phase | AC220V 50/60HZ single phase |
| Machine size |
L*W*H (1180mm*1180mm*1350mm) |
L*W*H (1180mm*1180mm*1350mm) |
L*W*H (1180mm*1180mm*1350mm) |
L*W*H (1180mm*1180mm*1350mm) |
| Machine weight | 800kg | 800kg | 800kg | 800kg |
| Dust cleaner power | 3HP | 3HP | 3HP | 3HP |
| Dust cleaer power supply | AC380V 3 phase | AC380V 3 phase | AC380V 3 phase | AC380V 3 phase |
| Dust clear size |
L*W*H (665mm*635mm*1610mm) |
L*W*H (665mm*635mm*1610mm) |
L*W*H (665mm*635mm*1610mm) |
L*W*H (665mm*635mm*1610mm) |
| Dust cleaner weight | 155kg | 155kg | 155kg | 155kg |
| Dust cleaning method | Top side/bottom size cleaning (optional) | Top side/bottom size cleaning (optional) | Top side/bottom size cleaning (optional) | Top side/bottom size cleaning (optional) |
Advantages
Tool breakage detection function, real-time monitoring of tool usage status
Automatic tool correction function to avoid height deviation problems when changing tools
Double tabletops work continuously to maximize machine productivity
Saw type blade and spindle routing combined cutting
