| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-310L |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Pneumatic PCB Depanelizer | Other Name: | V-CUT PCB Separator |
|---|---|---|---|
| Voltage: | AC100-240V | Pcb Length: | 0~ 360mm |
| PCB Thickness: | 0.1~2.0mm | Part Top Height: | 40mm(max) |
| Part Bottom Height: | 20mm(max) | Usage: | PCB Board,aluminum Board,Cut V-cut Pcb,LED Board |
| High Light: | 40mm Pneumatic PCB Depanelizer,Pneumatically Driven V-CUT PCB Separator,40mm Height Pneumatic PCB Depanelizer |
||

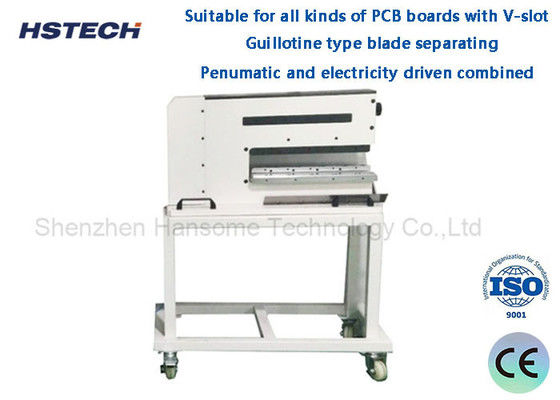

Pneumatically Driven V-CUT PCB Separator 40mm Height Pneumatic PCB Depanelizer
Introduction:
1. Pneumatically driven and electric control , sample design. There have sensor device in the machine ,cuttting board one time with lowest cut stresses.HS-310 apply for separate precise SMD PCBA or thin plates.
Features:
Specification:
| Product name | PCB depanelizer |
| Model | HS-310L |
| Part-up height | Max 40mm |
| Part-down height | Max 20mm |
| Air supply | 5Kgf/cm |
| Output | 12.5tons(gross) |
| Efficient cutting length | 1-360mm |
| Linear blade size | 360*43.5*6mm |
| PCB thickness | 0.1mm~2.0mm(With v grove) 0.1mm ~1.0mm(Without V grove ) |
| Blade material | Import high quality high speed steel tool |
| Separating speed | 1-300mm/s |
| V-cut thickness | 0.3-3.5mm |
| Air consumption | 200-400(L/min) |
| Machine size | 700*325*400mm |
| Weight | 130kg |
| Suitable board | All V-cut boards |
Application boards:
