| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-801 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Chip Mounter Nozzle Cleaner | Other Name: | SMT Nozzle Cleaner |
|---|---|---|---|
| Suitable Nozzle Brand: | JUKI, FUJI, YAMAHA, Panasonic, Samsung, Simens, Etc | Cleaning Process: | Cleaning And Drying |
| Material: | Stainless Steel | Warranty: | 1 Year |
1, This nozzle cleaner work with pure compressor air as power, using D.I water as solvent, cleanness and not harmful.
2, The whole process including cleaning and drying, ensure the nozzles can be reuse quickly.
3, Elegant white color for the machine surface, control panel at the right side, good appearance.
4, Light display for the machine status.
5, Equip with a D.I water storing tank, with a cover at the top side, also with water level scale display.

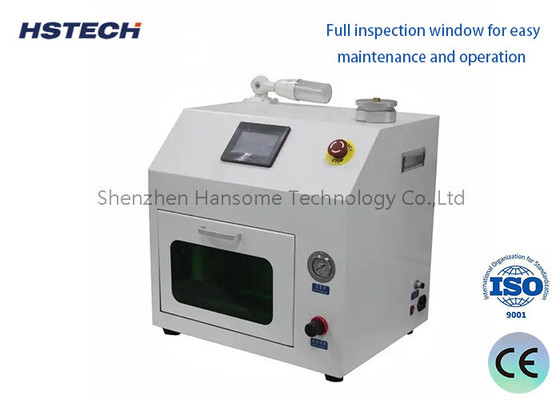

6, Transprent cover window, can fully watching the cleaning process.

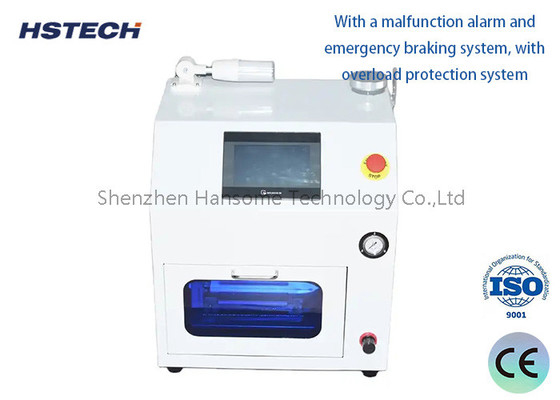

7, Safety protect, alarm function when cleaning and drying is finished. Also with emergency stop button control and electricity overload protection.
8, Touch screen panel control, easy to learn and understand.
9, One button operation, after set the cleaning time and drying time, press the start button to start, and wait till it finished.
10, Low working noise.
| Model | HS-801 |
| Usage | Cleaing dirty on the nozzles |
| Cleaning objects | Nozzles from all the chip mounter |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 0201-2512inch |
| Noise | 35-60dB |
