| Place of Origin: | Japan |
| Brand Name: | FUJI |
| Certification: | CE |
| Model Number: | H01/H02 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Product Name: | FUJI Nozzle | Usage: | For SMT Machine |
|---|---|---|---|
| Part Number: | H01/H02 5.0 7.0G | Condition: | Original New, Or Copy New |
| Package: | Foam Package+Plastic BOX+Carton Box | Shipping Term: | TNT DHL FEDEX EMS UPS |
| Type: | SMT Machine Parts | Customized: | Accept |
| High Light: | Electronic Component Mounting SMT Nozzle,FUJI H01 SMT Nozzle |
||

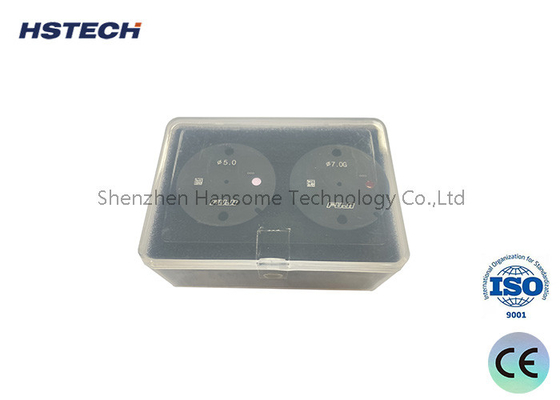

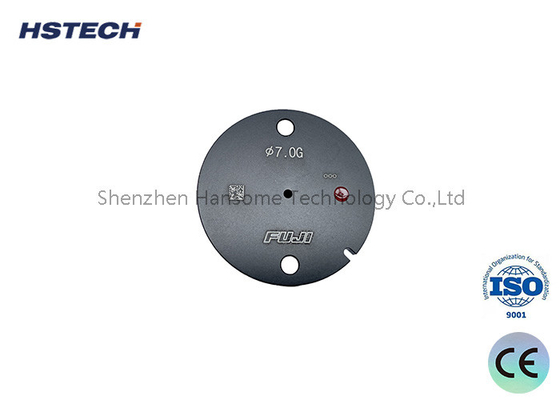

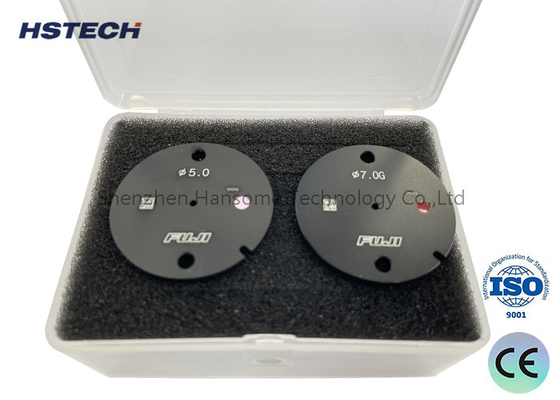

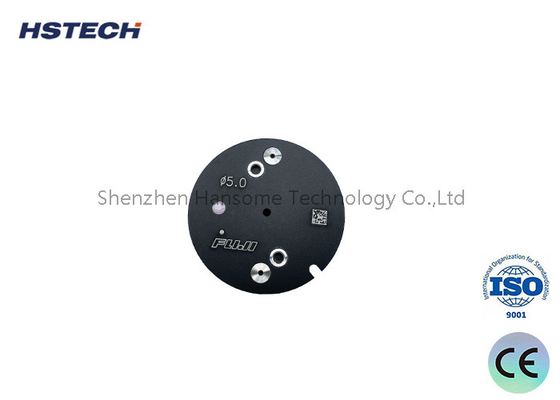

FUJI H01 H02 5.0 7.0G SMT Nozzle for Electronic Component Mounting
Mounter nozzle material:
1, tungsten steel suction nozzle: tungsten steel suction nozzle sturdy, but easy to white, not afraid of trouble friends, Samsung suction nozzle, or SMT newcomers can choose tungsten steel suction nozzle, whitened with an oil-based pen coated, but also can continue to use.
2, ceramic nozzle: ceramic nozzle white, but very brittle, easy to break. Careful use can avoid or reduce the occurrence of breakage.
3, diamond steel nozzle: strong, good, white, but especially expensive, cost-effective.
4, rubber tip nozzle: when the surface of the material is not flat or sticky material, suitable for the use of rubber tip nozzle, but the rubber tip nozzle life is not long, it is recommended to order the rubber tip nozzle, samsung nozzle models, buy more rubber tip spare, when the tip is worn out, you can directly replace the rubber tip on their own.
Nozzle shape:
The shape of nozzle has square hole, round pass, V groove and so on. Custom-made suction nozzle, generally according to the shape of the material, choose a flat suction point, some made of elongated nozzle, into the material groove plane suction, some according to the edge of the material, made back to the word type, some of the two ends of the plane, the middle of the middle is not flat, it is necessary to build a bridge. Some materials are sticky, not good to put material, then we need to cut some slots in the nozzle wall, or made into a rubber head.
FUJI NOZZLE For NXT Machine (H12,H08,H04,H01 Heads)
| Part Numbwr | Description |
| AA05600 | H0812 Yellow Φ0.45/0.3 |
| AA05700 | H08 Blue Φ0.7/0.5 |
| AA05800 | H08 Pink Φ1.0 |
| AA20A00 | H08 Green Φ1.3 |
| AA06400 | H08 Orange Φ1.3 Melf |
| AA20B00 | H08 Aqua Φ1.8 |
| AA19G00 | H08 Orange Φ1.8 Melf |
| AA20C00 | H08 Purple Φ2.5 |
| AA06504 | H08 Orange Φ2.5 Melf(R07-025M-070) |
| AA0WT00 | H08 Purple Φ2.5G |
| AA20D00 | H08 Yellow-Green Φ3.7 |
| AA18C00 | H08 Yellow-Green Φ3.7G |
| AA20E00 | H08 Medium pruple Φ5.0 |
| AA06300 | H08 Red Φ5.0G |
| AA06W00 | H04 Pink Φ1.0 |
| AA06X00 | H04 Green Φ1.3 |
| AA06Y00 | H04 Aqua Φ1.8 |
| AA22Z14 | H04 Orange Φ1.8 Melf |
| AA06Z00 | H04 Pruple Φ2.5 |
| AA07F00 | H04 Pruple Φ2.5G |
| AA07A00 | H04 Yellow-Green Φ3.7 |
| AA07G00 | H04 Yellow-Green Φ3.7G |
| AA07B00 | H04 Medium pruple Φ5.0 |
| AA07H00 | H04 Red Φ5.0G |
| AA07C00 | H04 Medium pruple Φ7.0 |
| AA07K00 | H04 Dark Red Φ7.0G |
| AA07D00 | H04 Medium pruple Φ10.0 |
| AA07L00 | H04 Navy Φ10.0G |
| AA07E00 | H04 Medium pruple Φ15.0(R19-150-155) |
| AA07M00 | H04 White Φ15.0G(R19-150-155) |
| AA8WX00 | H04S Φ2.5(R19-025-155-S) |
| AA8CC00 | H04S Φ3.7(R19-037-155-S) |
| AA0AS00 | H01 Pink Φ1.0 |
| AA05800 | H01 Green Φ1.3 |
| AA0MZ00 | H01 Orange Φ1.3 Melf |
| AA06900 | H01 Aqua Φ1.8 |
| AA11R00 | H01 Orang Φ1.8 Melf |
| AA07000 | H01 Purple Φ2.5 |
| AA08400 | H01 Purple Φ2.5G |
| AA07100 | H01 Yellow-Green Φ3.7 |
| AA08500 | H01 Yellow-Green Φ3.7G |
| AA07900 | H01 Medium pruple Φ5.0 |
| AA07200 | H01 Red Φ5.0G |
| AA08000 | H01 Medium pruple Φ7.0 |
| AA07300 | H01 Dark Red Φ7.0G |
| AA08100 | H01 Medium pruple Φ10.0 |
| AA07400 | H01 Navy Φ10.0G |
| AA08200 | H01 Medium pruple Φ15 |
| AA07500 |
H01 White Φ15.0G |
| Round nozzle | The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc. |
| Rectangular nozzle | The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc. |
| Needle nozzle | Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc. |
| V-shaped nozzle | V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc |
In addition, there are some special types of nozzles, such as rotating nozzles, elbow nozzles, etc., which can be selected and used according to specific placement requirements. It should be noted that different nozzles are suitable for electronic components of different sizes and shapes. Choosing the appropriate nozzle type is very important for the efficiency and quality of placement work.
FUJI NXT Series NOZZLE:
NXT H08(H12) 2.5G nozzle,
AA73500 NXT H08(H12) 0.7 nozzle,
AA08500 NXT H01 3.7G nozzle,
AA08400 NXT H01 2.5G nozzle,
AA08300 NXT H01 20.0 nozzle,
AA08200 NXT H01 15.0 nozzle,
AA08100 NXT H01 10.0 nozzle,
AA08000 NXT H01 7.0 nozzle,
AA07900 NXT H01 5.0 nozzle,
AA07600 NXT H01 20.0G nozzle,
AA07400 NXT H01 10.0G nozzle,
AA07300 NXT H01 7.0G nozzle,
AA07200 NXT H01 5.0G nozzle,
AA07100 NXT H01 3.7 nozzle,
AA07000 NXT H01 2.5 nozzle,
AA06900 NXT H01 1.8 nozzle,
AA06400 NXT H08(H12) 1.3M nozzle,
AA06400 NXT H08(H12) 1.3G nozzle,
AA06300 NXT H08(H12) 5.0G nozzle,
AA05800 NXT H08(H12) 1.0 nozzle,
AA05800 NXT H01 1.3 nozzle,
AA05700 NXT H08(H12) 0.7 nozzle (0.7X0.5),
AA05600 NXT H08(H12) 0.4 nozzle (0.45X0.3),
AA20E00 NXT H08(H12) 5.0 nozzle,
AA20D00 NXT H08(H12) 3.7 nozzle,
AA20C00 NXT H08(H12) 2.5 nozzle,
AA20B00 NXT H08(H12) 1.8 nozzle,
AA20A00 NXT H08(H12) 1.3 nozzle,
AA19G00 NXT H08(H12) 1.8G nozzle,
AA18C00 NXT H08(H12) 3.7G nozzle,
AA11R00 NXT H01 1.8G nozzle,
AA08C00 or AA07L00 or AA07W00 or AA07D00 NXT H04 10.0 nozzle,
All item of nozzle for FUJI Pick and Place Machine
NXT nozzle H01 H02 head nozzle 2.5/2.5G/2.5M nozzle specification model complete
Product features:
First, complete specifications, you can choose the right product according to the equipment.
Second, fine packaging, beautiful appearance at a glance.
Third, the use of high-grade plastic as raw materials. Fine workmanship.
