| Product Name: | SMT Nozzle | Packing: | BOX |
|---|---|---|---|
| Nozzle Brand: | Tenryu | Shipping Terms: | Ship By Air Fedex Dhl Ups Tnt Ems Etc. |
| Type: | SMT Machine Parts | Condition: | Original New, Or Copy New |
| High Light: | P062 SMT Nozzle,Tenryu SMT Nozzle,P061 SMT Nozzle |
||

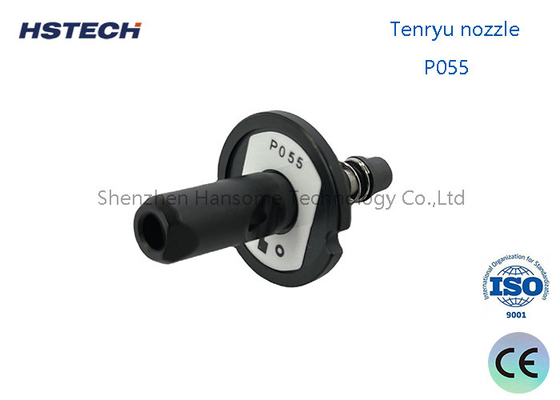

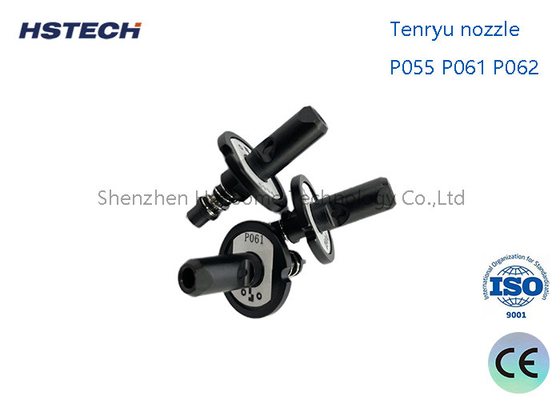

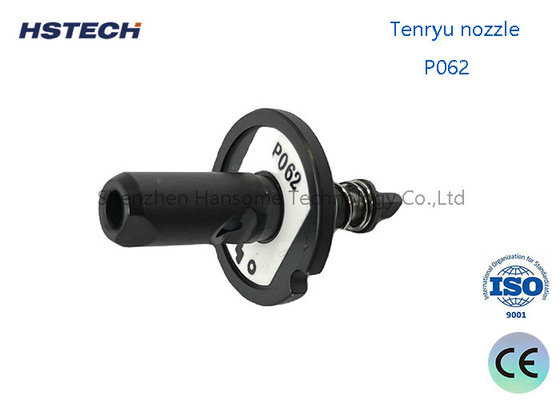

Stock Tenryu SMT Nozzle P055 P061 P062 Used To Pick Up And Place Small Electronic Components
Introduce
The nozzle of the SMT machine is an indispensable key part of the SMT machine. The function of the SMT nozzle is not only to absorb the components for placement, but also to serve as the background for the camera of the optical vision system when shooting.
Effect
The suction nozzle is the part that directly contacts the SMD component when vacuum negative pressure occurs. The size of the suction nozzle hole depends on the shape of the SMD component. In order for the placement machine to be able to mount a variety of components, the placement machine also needs to be equipped with an automatic nozzle replacement device. There is also an elastic compensation buffer mechanism between the suction nozzle and the suction tube to ensure that the suction nozzle protects the components during the pick-up and placement process and improves the placement rate of the equipment.
Performance
The performance of the SMT nozzle actually mainly depends on the size of the suction cup and the fit of the components being removed. It depends on the shape and size of the components. If you are mounting special components, you can also use opposite-sex nozzles for placement production.
Nozzle classification: high-speed head and general-purpose head
1. The high-speed head is mainly used to pick up relatively small components: such as 0201,0402
2. The general-purpose head mainly absorbs relatively large components or some heterogeneous components. The mounting speed of the general-purpose head is generally slow.
Nozzle shape
The shape of the suction nozzle includes square hole, round hole, and V groove.
SMT (Surface Mount Technology) nozzle is an important tool used in automated placement equipment for electronic components, used to pick up and place small electronic components. There are many types of SMT nozzles according to different needs, common ones include:
| Round nozzle | The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc. |
| Rectangular nozzle | The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc. |
| Needle nozzle | Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc. |
| V-shaped nozzle | V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc |
Tenryu nozzle model
7100 K01 nozzle
7100 K02 nozzle
7100 K03 nozzle
7100 K04 nozzle
7100 K05 nozzle
7100 K06 nozzle
7100 K020 nozzle
M1 M002 nozzle
M1 M003 nozzle
M1 M004 nozzle
M1 M005 nozzle
M1 M006 nozzle
M1 M012 nozzle
M1 M013 nozzle
M1 M018 nozzle
M1 M020 nozzle
M1 M021 nozzle
M1 M022 nozzle
M1 M032 nozzle
M6 P005 nozzle
M6 P005 nozzle
M6 P005 nozzle
M6 P006 nozzle
M6 P013 nozzle
M6 P017 nozzle
M6 P018 nozzle
M6 P019 nozzle
M6 P020 nozzle
M6 P031 nozzle
M6 P032 nozzle
M6 P033 nozzle
M6 P034 nozzle
