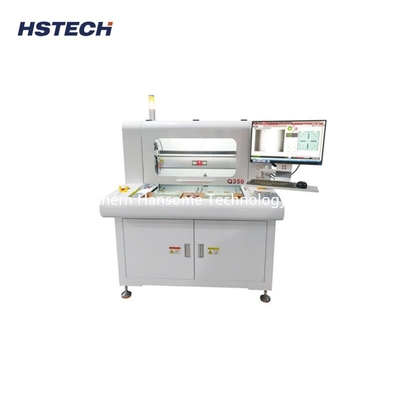

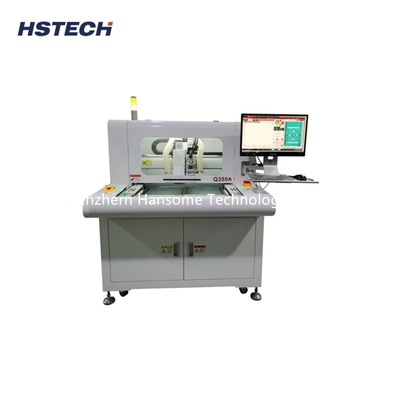

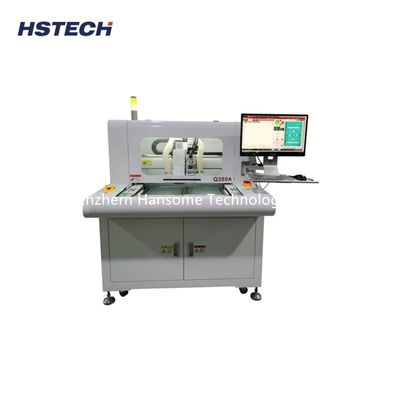

Twin Working Table Bit PCB Depaneling Router Automatic Offline PCB Router For PCB Board Cutting

High Quality Twin Working Table Bit PCB Depaneling Router Automatic Offline PCB Router For PCB Board Cutting

Introduce

PCB Depaneling machine is one of the indispensable equipment in the electronic manufacturing process. The separator usually refers to PCB separator, which is also a circuit board separator. Depaneling machines are widely used in electronic product manufacturing. Since the traditional manual folding method will produce strong stress and seriously affect product quality, manual folding has basically been replaced by machine splitting. ​

The depaneling machine can be divided into the following types:

1. Manual splitting machine

The manual depaneling machine is the most basic and simplest PCB depaneling machine. It requires a manual operator to gently turn the machine to cut. PCB boards cut by manual splitters are relatively low-precision, time-consuming and labor-intensive, and are suitable for sample production and small batch production.

2. Electric plate splitting machine

The electric depaneling machine is driven by a motor to split the depanel. Its work efficiency is higher than that of the manual depaneler, and its accuracy is relatively high. It is widely used in small batch production and medium-scale production.

3. Laser depaneling machine

The laser depaneling machine is a newer PCB depaneling machine. It uses high-energy laser beams for cutting to produce PCB boards more accurately. It is also very effective for heat-resistant boards such as photosensitive circuit boards and metal plates. Good applicability.

Features of depanel machine

☆The entire machine is designed using the C-shaped structural principle of no bending stress and high rigidity.
☆Use compressed air as power to process V-cut connecting and splitting operations.
☆Safely separate boards for extremely sensitive SMD parts or ultra-thin PCBs.
☆No vibration occurs during panel splitting operation.
☆Pneumatic drive, quiet and noiseless.
☆The upper and lower tool gaps can be easily adjusted.
☆The lower knife can be adjusted in YZ direction.
☆The tool is designed with a face angle structure and can cut PCB parts that are almost close to the V-groove.

Technical Parameters

Depanel application
In actual production, PCB depanelers are widely used in the manufacturing of various electronic products, such as mobile phones, computers, televisions, etc., making important contributions to the development of the electronics manufacturing industry.

Packing
