| Product Name: | PCBA Router Machine | Platform: | Double |
|---|---|---|---|
| Guide: | Hiwin | Voltage: | AC380V 50HZ |
| Other Name: | Automatic PCB Router | Routing Spindle: | 6000RPM |
| Driven Motor: | Servo Motor | Warranty: | 1 Year |
| High Light: | CCD Detection PCBA Router Machine,Double Platform PCBA Router Machine,Servo Motor PCBA Router Machine |
||

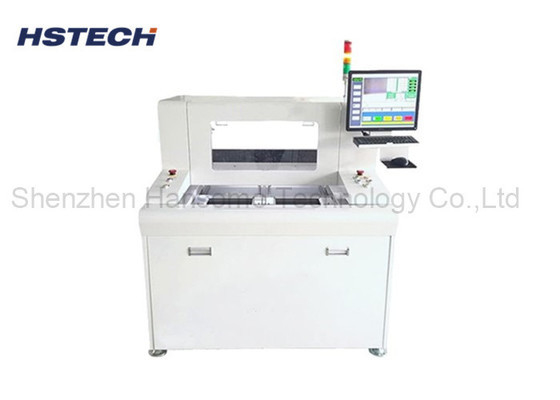

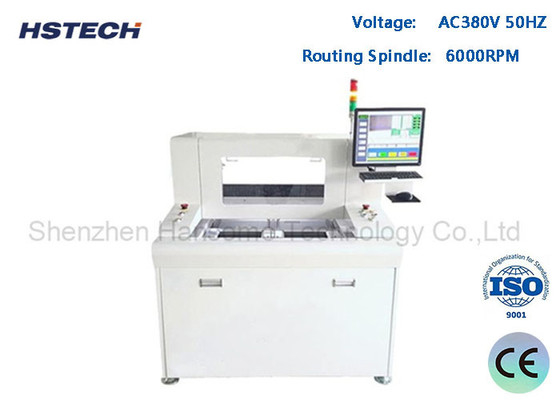

Servo Motor X/Y/Z Axis PCBA Router Machine CCD Detection with Double Platform
Introduction
This automatic PCB router machine using high speed-routing spindle, equipped with double platform, 4 axis servo motor driven,
the spindle moving according to the preset programming, automatic separating the stamp hole connectted board, curve board,and other inregular shape boards.
The machine use window operation system, CCD detection the separating track,can check the separating process any time.
Feature
This PCB Separator adopt x,y,z servo motor and driving system and ball screw ,linear guide railensure machine run smooth and precisely,moving accuracy less than 0.01mm, routing accuracyess then 0.05mm.
Rotary double work station design makes continuous running ,greatly improve productionefficiency .
Machine is equipped with high resolution CcD ,use direct teach programming method with crosscursor of CCD, very easy to operate , software can excute point ,line ,arc ,circle etc command to cutdifferent shape of panelled board ,it has mark positioning function ,can automatically correct thecoordinate offset when PCB position changed .Industrial PC ,Windows system and full english self developed softeware makes programming and
operating very easyEuipped with quality ,air cooling long service life routing spindle .External silence vaccum cleaner provide a clean and low noise work environment .Miling cut can be used as 2 or 3 section , just set the parameter on sofeware , it has greatlyprolonged milling cut' service life.
Equipped with anti static ionizing fan which can eliminate static and remove dust.
Main features
1, High speed routing spindle, 6000rpm.
2, Windows operation, manual location or file import.
3, CCD detection.
4, Internal dust-collector including.
5, Suitable for separating FPC board, aluminum board, FR4,etc.
6, Mainly used for separating stamp hole connected board, curve board, instead of traditional v-cut board.
Sepcfication
| Model | RM-560 | ||
| Structure | Single Spindle,dual work platforms | ||
| Machine Size(mm) | 1000*1200*1550 | ||
| Gross Weight | 700kg | ||
| Dust collector size(mm) | 625*600*1600 | ||
| Dust Collection method | Bottom collection | ||
| Work platform size | 300*400mm | ||
| Platform driving type | Double rotary platform,precision slicer with 3phase motor inverter | ||
| Driving system | X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter | ||
| Routing Spindle | 6000rpm | ||
| Cutting speed | 1-100mm/s | ||
| Cutting accuracy | ±0.05mm | ||
| Repeat accuracy | ±0.02mm | ||
| Axis moving speed | 800mm/s | ||
| Z axis system | Screw driven,dual guide | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Tool life control | Software program control | ||
| Active protective function | safty light curtain | ||
| Security door | Manual door | ||
| Error alarm | Yes | ||
| Program method | Self programing,camera controlled by keyboard and mouser | ||
Machine details
High Speed routing spindle and internal dust-collector
Windows7/10 English version operating system,simple for debugging and operation.
