| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-C1500 |
| Minimum Order Quantity: | 3 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~14 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | Linking Conveyor | Other Name: | SMT Conveyor |
|---|---|---|---|
| Transporting Length: | 1500mm | Transport Belt: | ESD Flat Belt |
| Working Table: | ESD Table | Width Adjustment: | Hand Crank/ Optional Automatic |
| Warranty: | 1 Year | Packing: | Wrap, Wooden Box |

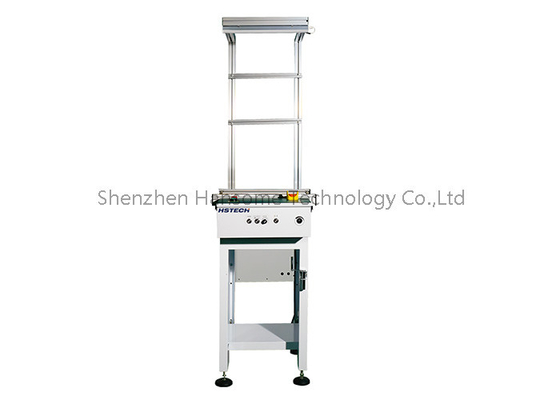

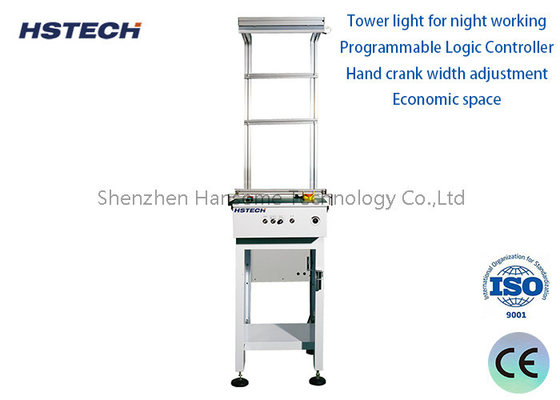

1500mm PCB Handling Equipment with Optional Tower Light Inspection and Dust Cover
It is used for the connection between SMT production lines, and can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.
Features
1, With Inspection fuction, individual control button.
2, 1500mm in length, width adjustment at 390mm.
3, Transporting speed adjustment by Knob.
4, ESD green color work table.
5, Aluminum alloy transporting rail.
6, LED button control, speed adjustment motor.
7, Optional function available, tower light, inspection, dust cover, etc.
8, Customized requirement available.
9, Length available, 600mm, 1000mm, 1500mm, or optional.
10, SMEMA signal for inline connection.
Specification
| Model | HS-C1500/HS-C1500S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
Check before powering on
1,Check the supply power cord for damage.
2,Check whether the equipment has good grounding.
3,Check whether the control button is reset.
4,Check whether the width of the guide rail is suitable.
5,Check whether the belt is loose.
6,Above no abnormality can be switched on and ready for operation.
Precautions
1. Ensure that the transport part, belt, pulley and transport rail are free of foreign objects to ensure smooth and stable transport.
2. Regularly add oil to the transmission part, rack and pinion, or adjust the width of the screw, and the oiling must be carried out under the state of shutdown.
3. In case of power failure, turn off the power switch of the equipment immediately.
