Wave Test System TCK Series Thermal Profiler K-Type Thermocouple For Electronic Assembly

Wave Test System TCK Series Thermal Profiler K-Type Thermocouple For Electronic Assembly

Introduce

Eliminating the influence of factors such as weighing weight, sample uniformity, heating rate consistency, atmosphere pressure and flow rate differences, the correspondence between TG and DTA/DSC curves is better. Depending on whether a certain thermal effect corresponds to a mass change, it will help to identify the physical and chemical process corresponding to the thermal effect (such as distinguishing melting peaks, crystallization peaks, phase change peaks, decomposition peaks, oxidation peaks, etc.). Knowing the current actual mass of the sample at the reaction temperature facilitates accurate calculation of reaction enthalpy.

The wavelength of the product is continuously and automatically adjustable, and the accuracy is greatly improved. The wavelength error of traditional elemental analyzers is generally 20nm (preferably ±5nm) increased to the current 3nm. This allows the product to expand its application range while improving the accuracy of analysis and detection. Accuracy. It can detect Si, Mn, P, Cr, Ni, Mo, Cu, Ti and other elements in plain carbon steel, low alloy steel, high alloy steel, raw cast iron, ductile iron, alloy cast iron and other materials. Each element can store 99 working curves, controlled by brand computer and fully Chinese menu-based operation. It can meet the needs of metallurgy, machinery, chemical industry and other industries for multi-element analysis of materials in front of furnace, finished products, incoming material testing, etc.

Features

1. Thermal profiler 2. Insulation box

3. Temperature test line 4. Data download line

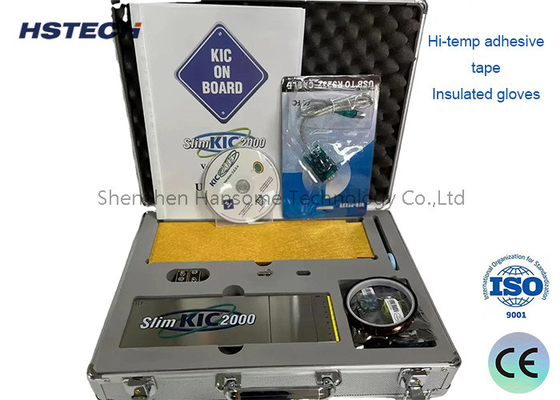

5. Charger 6. Hi-temp adhesive tape

7. Software CD 8. “+” screwdriver 9. Tweezers

10. Insulated gloves 11. Solder wire

12. Scissors 13. Instrument box

14. User Manual 15. Acceptance Certificate

16. RF Transceiver (Choose Composition)

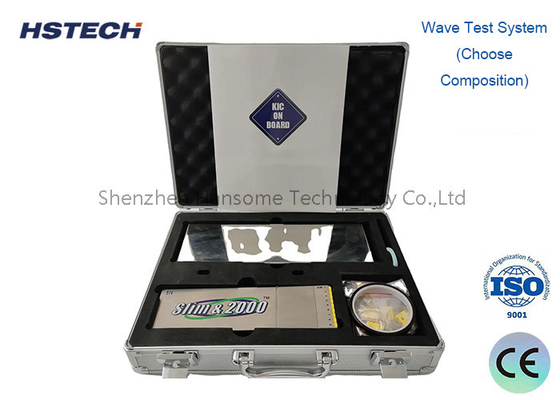

17. Wave Test System (Choose Composition)

Main Technical Specifications

1,Thermocouple: K-type thermocouple

2,Sampling interval:0.05sec---600sec Set with software

3,Record data:80000 point/channel, Can record 20 sets profile

4,Resolution: 0.1℃

5,Temperature measuring range: 0—1000℃

6,Temperature measuring accuracy: ±1.0℃

7,Total power: ≤120mW

8,Operating voltage:3.6VDC, rechargeable battery

9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm

10, Insulation box:245(L)×100(W)×30(H)mm

10,Start Mode : Manual, specified time or specified temperature

11,Record mode: Monitor/Record

12,Connection mode:USB/RF

13,Software version:Profilermanager 2.0

Product Library Manager

Machine Library Manager

Solder Library Manager

Recipe Library Manager

Data analysis

PWI

Peak Temp,Times of overtop the Temp

Times of between Temp(Reflow)

Slope of between Temp(Reflow)

Slope of between Times(Wave)

About Packaging
