PT100 PUR Jetting Valve HS PF PUR30CC Dispensing Valve SMT FPC PCB Assembly Equipment

PT100 Temperature Sensing PUR Jetting Valve HS PF PUR30CC Dispensing Valve For SMT FPC PCB Circuit Board Assembly Processing

The HS-PF-PUR30CC PUR Jetting Valve is a high-performance, precision-engineered fluid dispensing component designed for exacting industrial applications. Engineered to handle Polyurethane (PUR) and other reactive adhesives with exceptional accuracy, this valve ensures consistent, non-contact jetting performance. Whether you are managing high-speed assembly lines or intricate micro-dispensing tasks, the HS-PF-PUR30CC delivers reliable, repeatable results that elevate your manufacturing standards.

It has the following main features and functions:

1. High-precision jetting: PUR Jetting Valve uses advanced jetting technology to control the amount, speed and position of glue injection in a very precise manner. This accuracy makes it suitable for applications requiring high-precision glue application, such as fixing and sealing precision components.
2. Adjustability and programmability: The equipment has adjustable spraying parameters, such as glue spraying pressure, glue spraying time and glue spraying mode. This enables operators to fine-tune and optimize based on specific application needs. Some PUR Jetting Valve also have programmable functions, which can preset multiple glue spraying modes and paths to adapt to different process requirements.
3. Efficient production: PUR Jetting Valve has fast glue spray speed and response time to increase production efficiency. It is suitable for mass production environments, can quickly and accurately complete the glue coating task, and improve the production capacity and efficiency of the production line.
4. Strong adaptability: PUR Jetting Valve is suitable for glue materials with a variety of viscosities and fluidities, including polyurethane glue, epoxy glue, silicone glue, etc. The flexibility of the nozzle and valve design allows it to be adapted to different glue properties and application needs.
5. Self-cleaning function: Some advanced PUR Jetting Valve have a self-cleaning function, which can remove residual glue in the nozzle through cleaning fluid or gas flushing, reducing clogging and maintenance work.

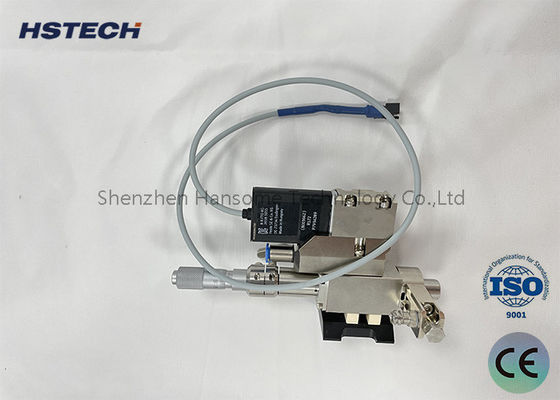

30CC PUR Jetting Valve

1. The PUR injection valve consists of a drum heating module, a pressurized cap module, a nozzle heating module, a flow path module, a valve body module and a heat dissipation module.
2. The barrel heating module carries the barrel as well as the one-stage heating with controllable temperature. The initial heating of the gel is completed.
3. The pressurized cap module seals and pressurizes the drum and controls the output pressure through the controller.
4. The heat dissipation module dissipates heat and reduces noise from the valve body.
5. The piezoelectric injection valve adopts a modular design, the part in contact with the gel is designed as the runner module, and the part not in contact with the gel is designed as the valve body module.
6. The flow path module can be changed to meet the dispensing requirements in different applications.
7. Nozzle diameters in series (from 40µm to 500µm).
8. The nozzles are categorized into flat jet type, needle type, and extension type.
9. Runner modules need to be cleaned regularly in an ultrasonic cleaner. Seals must not be immersed in organic solvents. Special tools are required to clean the nozzles to prevent damage to the nozzles.

Jet Valve Controller

1. The touch screen controls the piezoelectric injection valve and dispensing system, supports MES communication, powerful, safe and reliable.
2. The touch screen adopts graphic control mode, the components of dispensing system and the control display function are displayed graphically, which is concise and intuitive.
3. Nozzle heating device: The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts one-stage heating mode.

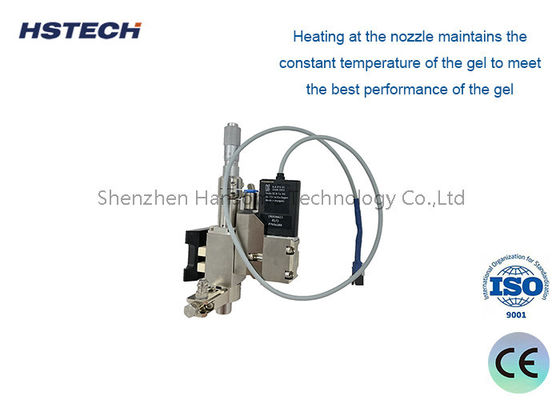

4. Heating at the nozzle maintains the constant temperature of the gel to meet the best performance of the gel. The best performance of the colloid.

Nozzle and barrel heating

1. The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts two-stage heating mode.
2. Heating at the nozzle maintains the constant temperature of the gel to meet the best performance of the gel. The best performance of the colloid.

1. SMT assembly processing
   SMT component fixing edge sealing and protection gluing for circuit boards
2. PCB rigid circuit board production
   PCB shell sealing electronic element waterproof bonding circuit edge reinforcement gluing
3. FPC flexible circuit manufacturing
   Thin FPC film bonding flexible wiring board edge sealing tiny pad fixing
4. 3C consumer electronics assembly
   Mobile phone middle frame bonding camera module sealing smart watch headset shell waterproof gluing battery shell shockproof sealing
5. Automotive electronic parts processing
   Automotive sensor sealing control module bonding small interior electronic component fixing
6. Precision small hardware and new energy parts
   Small battery sealing precision plastic metal composite bonding waterproof shockproof structural gluing

We don't just sell valves; we provide precision fluid management solutions. Our HS-PF-PUR30CC stands out because:

• Rigorous Quality Testing: Every valve undergoes strict performance and leak testing before leaving our facility.
• Global Technical Support: Our engineering team is available to assist with integration, troubleshooting, and optimization.
• Proven Reliability: Trusted by manufacturers worldwide for consistent performance in 24/7 production environments.
• Cost-Effective Ownership: Reduced material waste, lower maintenance costs, and extended lifespan translate to a superior ROI.

Ready to upgrade your dispensing process? Contact our sales team today for a custom quote, technical datasheet, or to schedule a product demonstration. Let the HS-PF-PUR30CC bring precision and efficiency to your production line.
